Semi-electric Pallet Truck
1. Variable speed control to tailor performance to task at hand
2. Low speed switch integrated in handle for precise control
3. Designed with safety features like emergency stop and reverse buttons
4. Integrated casters offer increased stability
5. Simple components for easier, efficient troubleshooting
- Overview
- Specifications
- Features
- Gallery
- Application
- Recommended Products
A semi-electric pallet truck (often called a walkie pallet jack) combines features of manual and fully electric models. It utilizes battery power for its most strenuous function – lifting and lowering the load – while movement (travel) is achieved by the operator pushing or pulling it manually.
The key component is the electric hydraulic pump, activated by buttons or a switch on the tiller handle. This allows the operator to effortlessly raise the forks a few inches to lift a pallet off the ground and lower it smoothly at the destination, eliminating the strenuous pumping required by a manual jack. However, to move the loaded truck, the operator physically walks behind it, steering via the tiller arm.
This hybrid design offers significant advantages: it drastically reduces operator fatigue associated with lifting heavy loads compared to manual jacks, while being considerably more affordable and requiring less maintenance than a fully electric model with a drive motor. It's an excellent solution for applications requiring frequent lifting of moderately heavy loads (typically up to 2,500 - 3,000 kg) over relatively short, level distances within warehouses, stockrooms, or loading docks, especially where budget constraints exist or travel distances don't justify a full electric truck.
Specifications and Parameters:
 Max.load |
2 t |
 Fork Length |
1150*160 mm |
 Size |
1540*550*1210mm |
 Lifting Height |
195 mm |
 Weight |
140kg |
 Color |
Red |
 Speed |
5 km/h |
 Protection class |
IPx4 |
|
|
Indoor / Outdoor |
Range of applicationProduct Features:
1.Powerful and Efficient Drive System
Equipped with an advanced AC traction system, the truck offers responsive acceleration and smooth direction changes. This ensures operators can quickly and precisely transport loads, even in tight spaces. For example, the Crown Equipment's WP series, known for its AC traction, allows for confident maneuvering, enhancing overall productivity.
2.Superior Stability
With features like dual lift cylinders paired with a heavy - duty torsion bar, the 5:30 electric pallet truck can handle offset or tall, unstable loads with ease, even over sloped and uneven surfaces. This stability system provides operators with the confidence to work in various conditions.
3.Ergonomic Design
The x10 handle, similar to that in some models, offers advanced ergonomics. It enables position speed control, allowing for easy maneuvering in tight spaces, and vertical tiller drive for finely - tuned positioning. This reduces operator fatigue, enabling them to work more efficiently for longer periods.
4.Low Cost of Ownership
The truck is engineered for maximum productivity at a minimum total cost. It may feature a removable, easy - exchangeable maintenance - free high - capacity lithium - ion battery, which provides long - lasting use and is interchangeable between models. Additionally, the maintenance - free brushless (AC) and gearless wheel hub motor reduces the need for component replacements over time.
5.Enhanced Safety Features
A multi - function control handle incorporates elements such as butterfly - style thumb controls, an emergency reverse button, a horn button, and a key switch. There is also an integrated battery status indicator and fork tip rollers for easy pallet entry and exit. These safety features protect both the operator and the goods being transported.

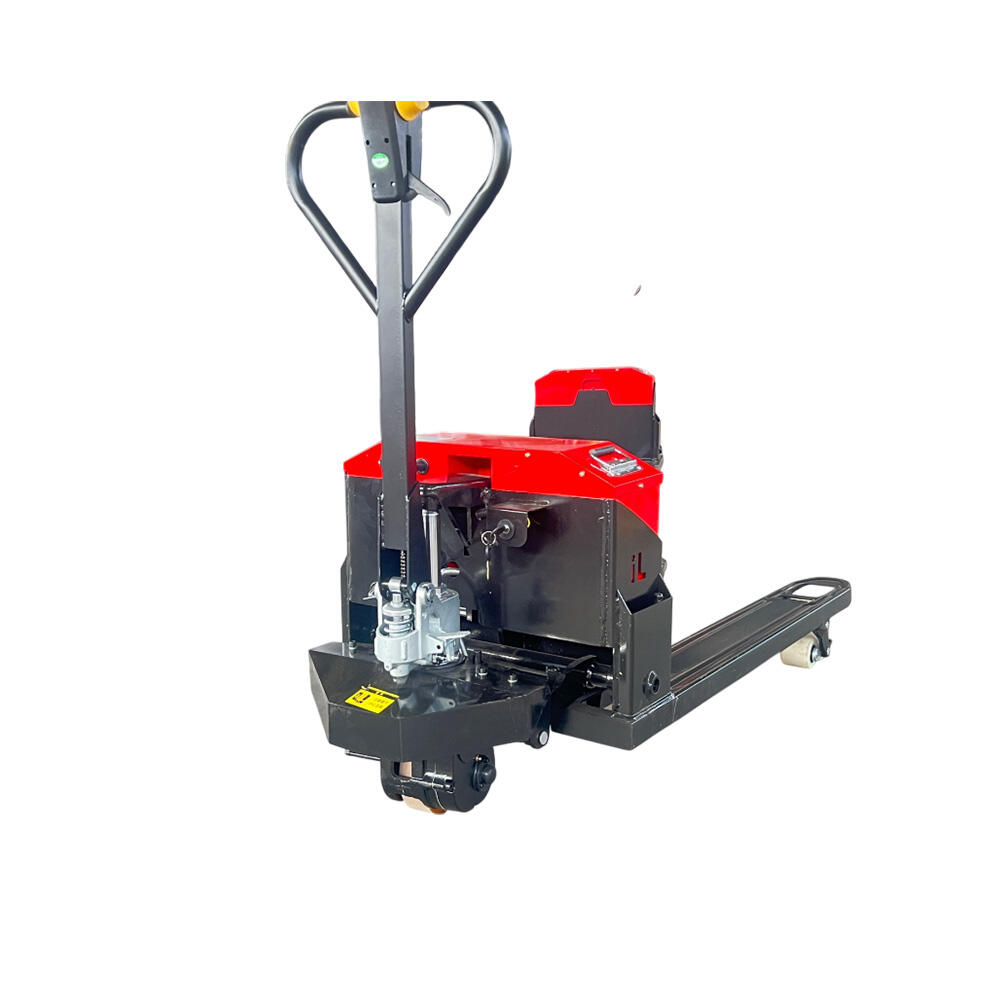

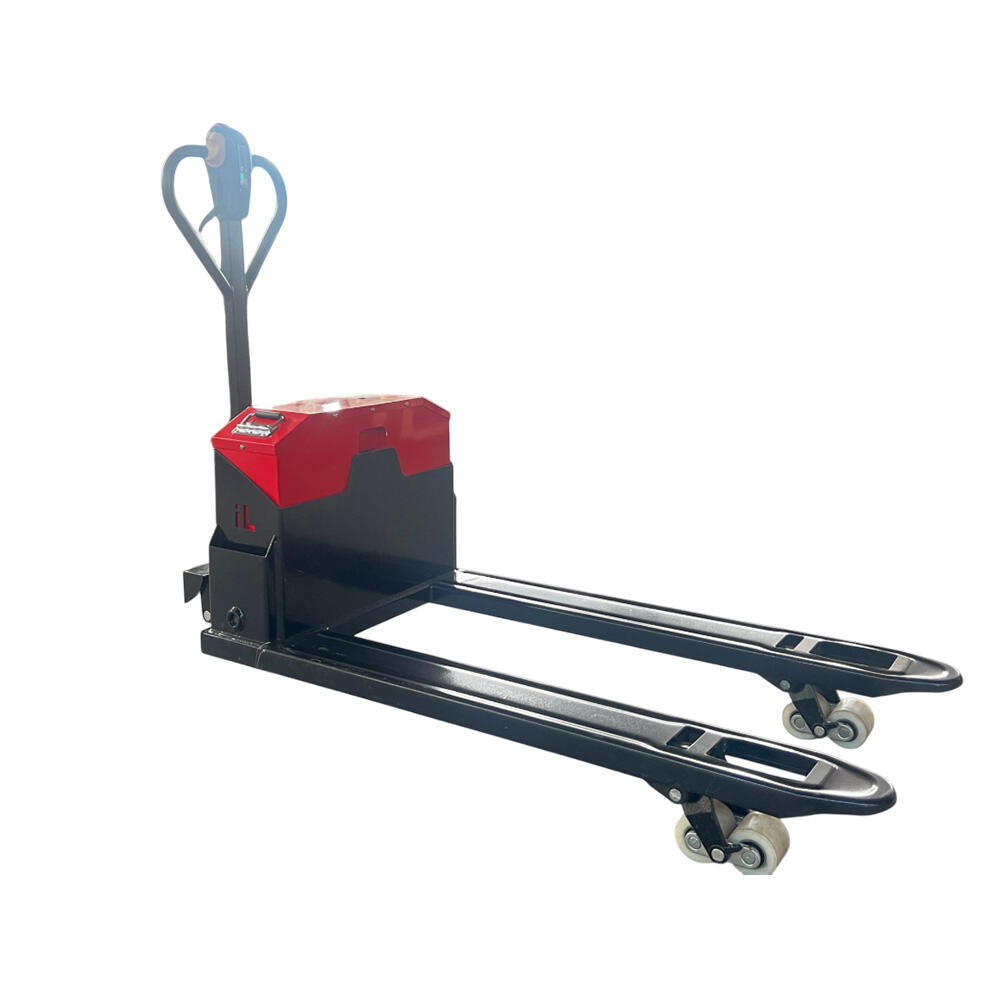

Product Images:
Application Scenarios:
- Warehousing & Logistics Centers: Pallet handling, stacking, racking operations.
- Manufacturing Plants: Line feeding, finished goods transfer, raw material handling.
- Wholesale & Retail: Goods handling in large distribution centers.
- Cold Storage Warehouses: Specially designed electric trucks for sub-zero environments.
