2.0T Semi-Electric Stacker
- Powerful Electric Lifting: Eliminates the physical strain of manual pumping, allowing operators to lift 2000kg loads with a simple button press.
- High Cost-Efficiency: Provides the core benefits of an electric stacker at a fraction of the cost, making it the top choice for startups and smaller warehouses.
- Safety-First Design: Equipped with a mechanical foot brake for secure positioning and a protective screen to ensure operator safety during high lifting.
- Versatile Compatibility: Features adjustable fork widths, making it compatible with various pallet sizes, including standard and non-standard skids.
- Overview
- Specifications
- Features
- Gallery
- Application
- Recommended Products
I. Hybrid Efficiency for Warehouse Versatility The Relilift 2T semi-electric stacker is the ultimate solution for facilities where heavy lifting is required but long-distance transport is minimal. By combining an electric lift motor with manual steering, it provides the precise vertical control needed for pallet racking without the complexity of a full-drive system.
II. Robust Hydraulic System & Structural Integrity Our stacker is engineered with a reinforced C-channel mast and a heavy-duty hydraulic pump. This ensures minimal mast deflection even when lifting a full 2-ton load to its maximum height, providing the structural confidence required in industrial environments.
III. Simple Maintenance & User-Friendly Operation With no drive motors or complex electronics, maintenance is significantly simplified. The built-in charger allows for easy "plug-and-play" charging from any standard wall outlet, ensuring the stacker is always ready for the next shift.
Specifications and Parameters:
 Max.load |
2 t |
 Fork Dimensions |
1150*180*50 mm |
 Size |
1870*790*2100mm |
 Lifting Height |
3000 mm |
 Turning Radius |
1430mm |
 Weight |
0.6 t |
 Color |
Yellow |
 Speed |
4 km/h |
 Charging time |
5-6h |
 Gradeability |
15% |
 Tyres |
PU wheel |
 Range of application |
Indoor / Outdoor |
Product Features:
- Superior Cost-Effectiveness: Delivers high-capacity electric lifting at a fraction of the cost of a full electric model—the best value for startups and small warehouses.
- Heavy-Duty 2T Lifting: Powered by a high-efficiency 1.6kW hydraulic motor, it lifts 2000kg with a simple button press, saving time and preventing operator injury.
- Adjustable Fork Versatility: Features adjustable fork widths to easily accommodate different pallet standards (EU/US) and non-standard cargo shapes.
- Plug-and-Play Charging: Includes an integrated intelligent charger that works with any standard wall outlet, requiring no specialized charging infrastructure.
- Robust & Stable Build: Engineered with a reinforced C-channel mast and a heavy-duty hydraulic pump to ensure rock-solid stability even at maximum lift heights.

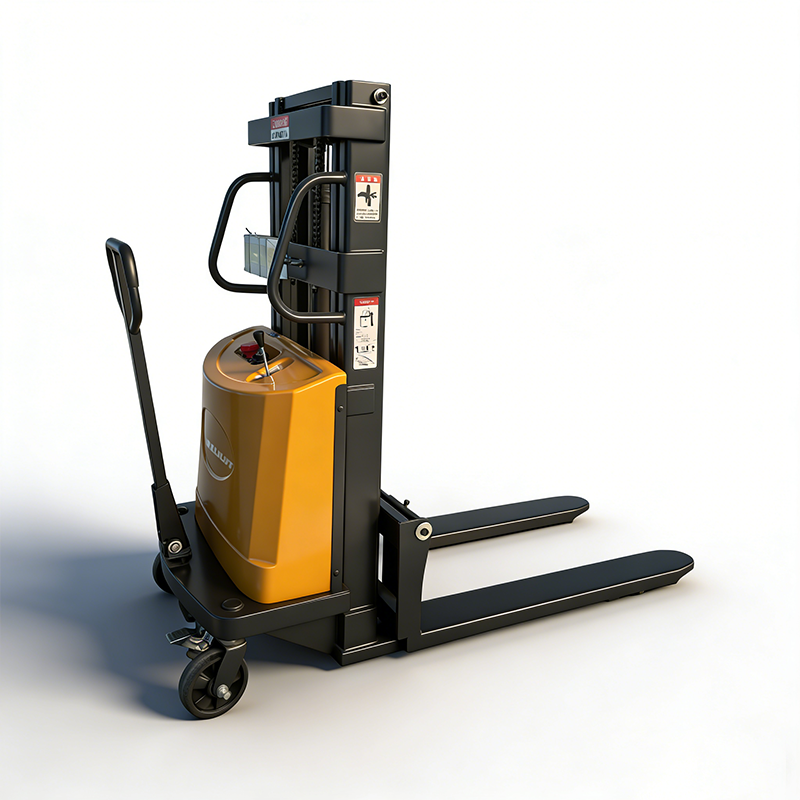

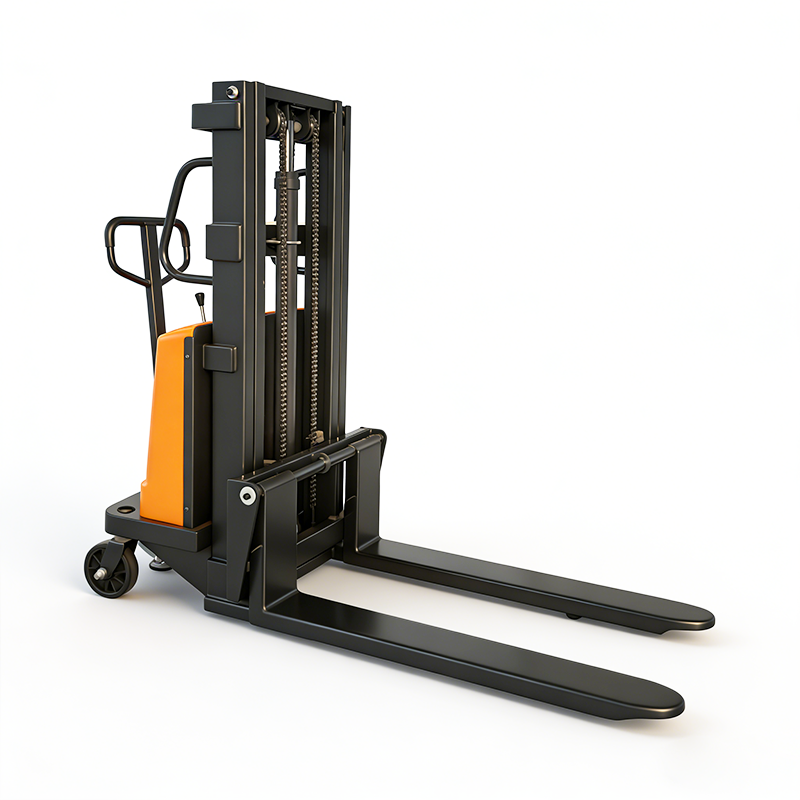

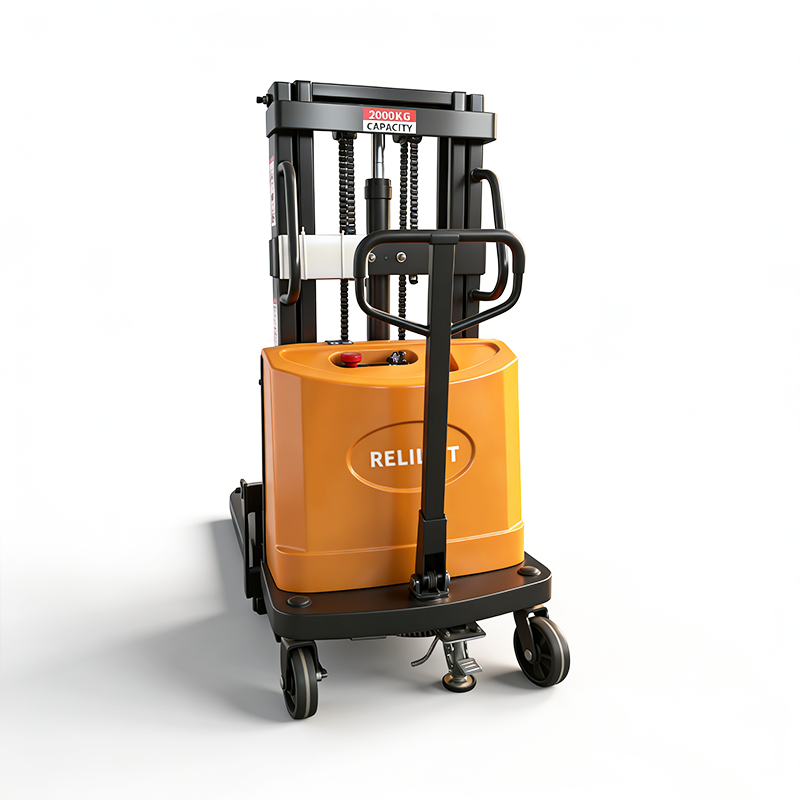

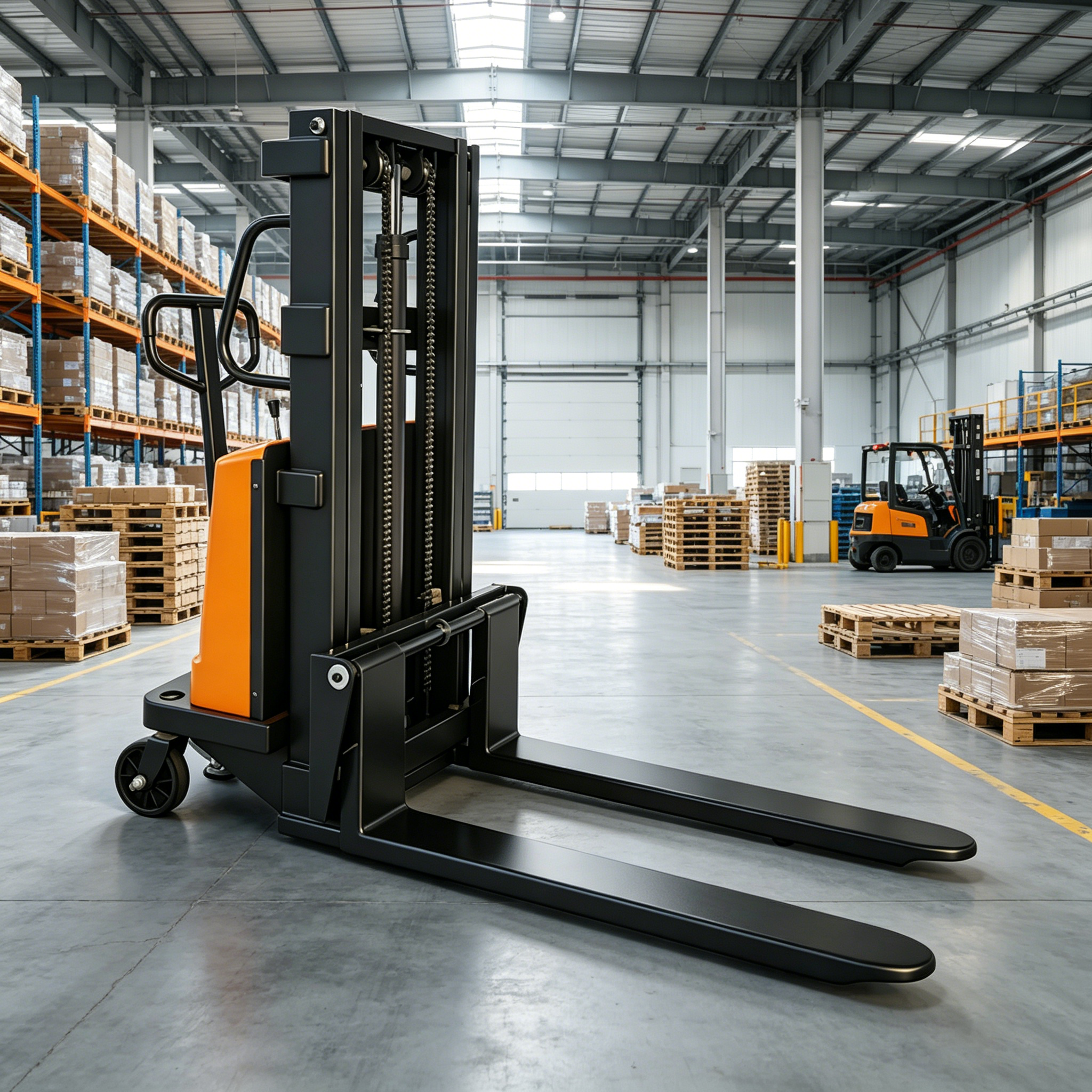

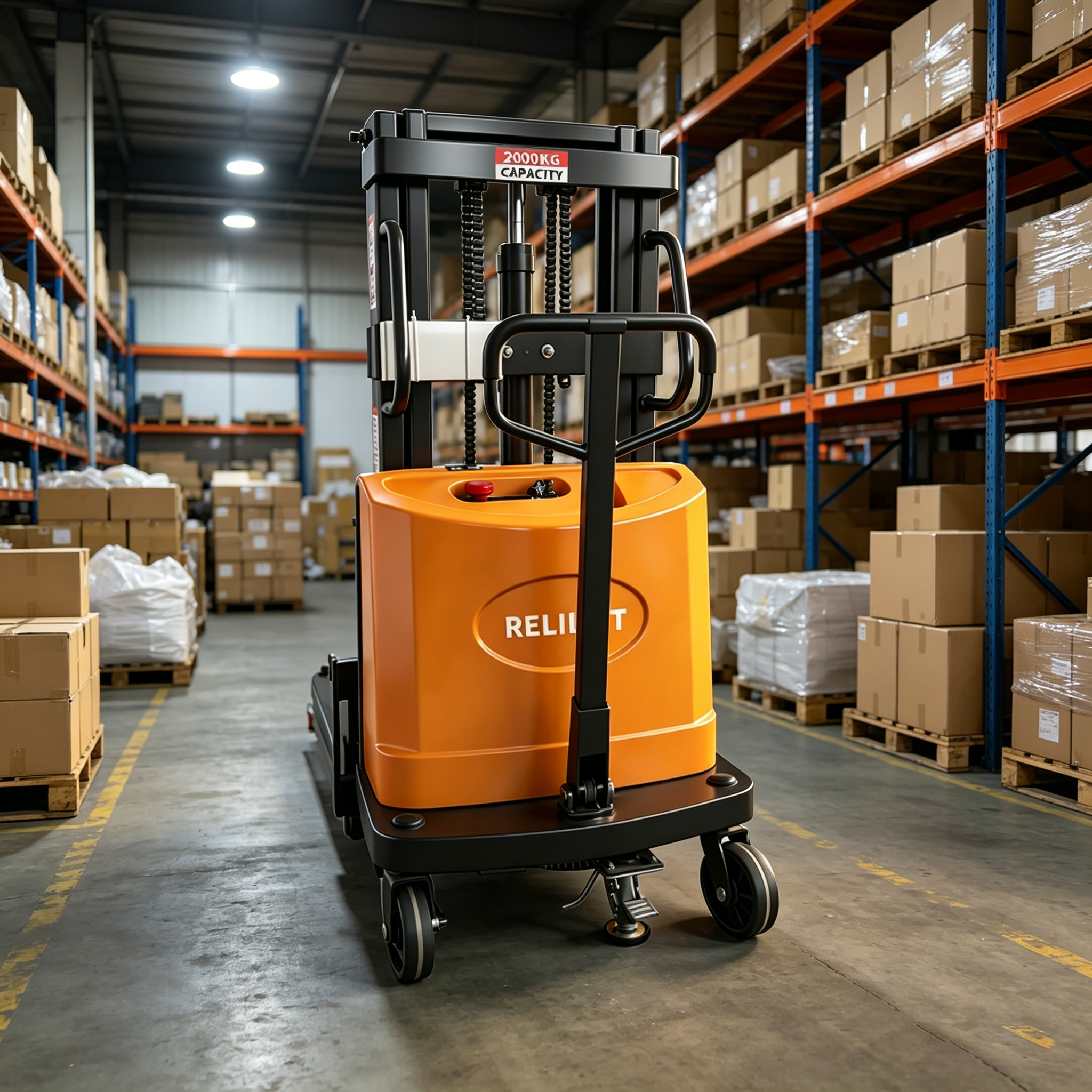

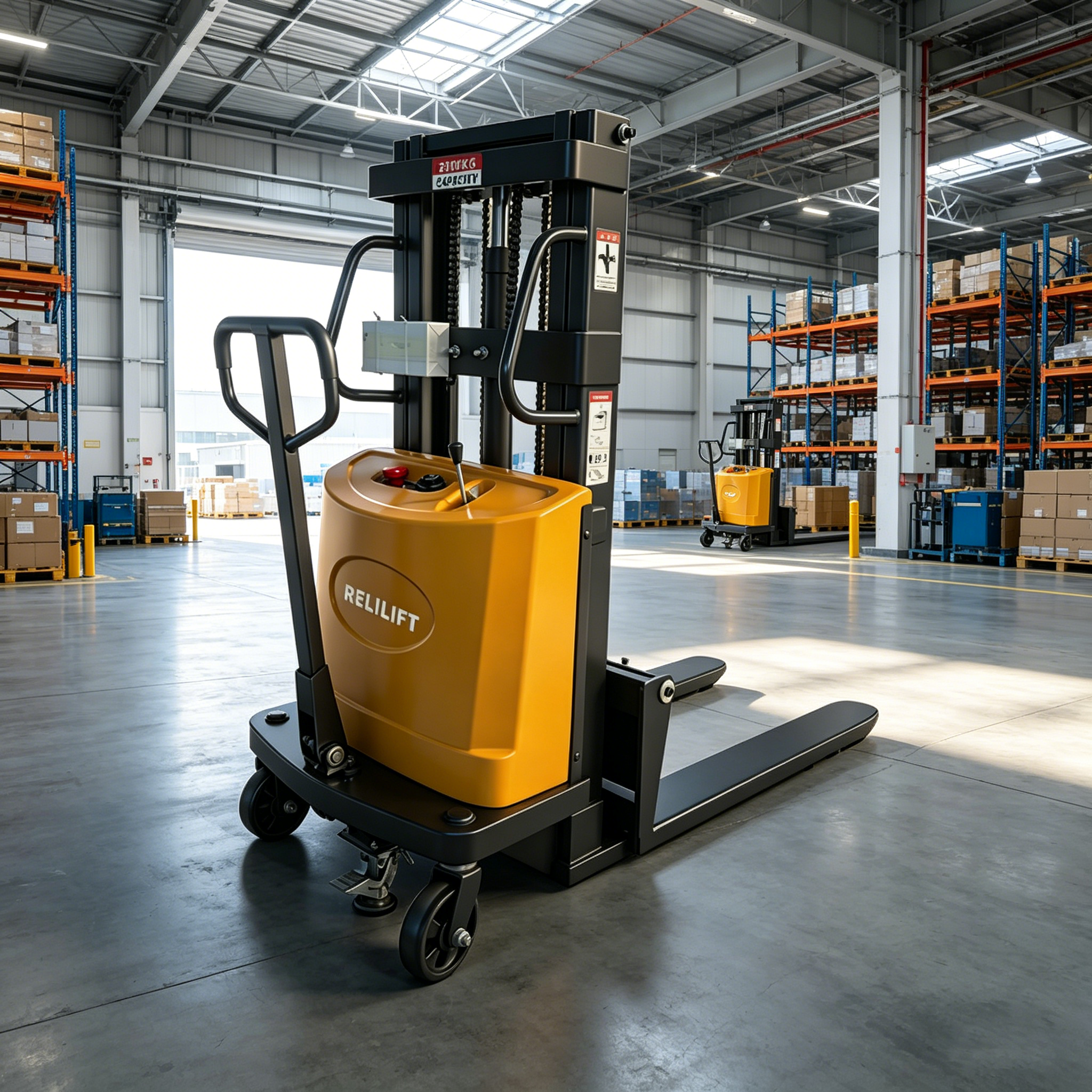

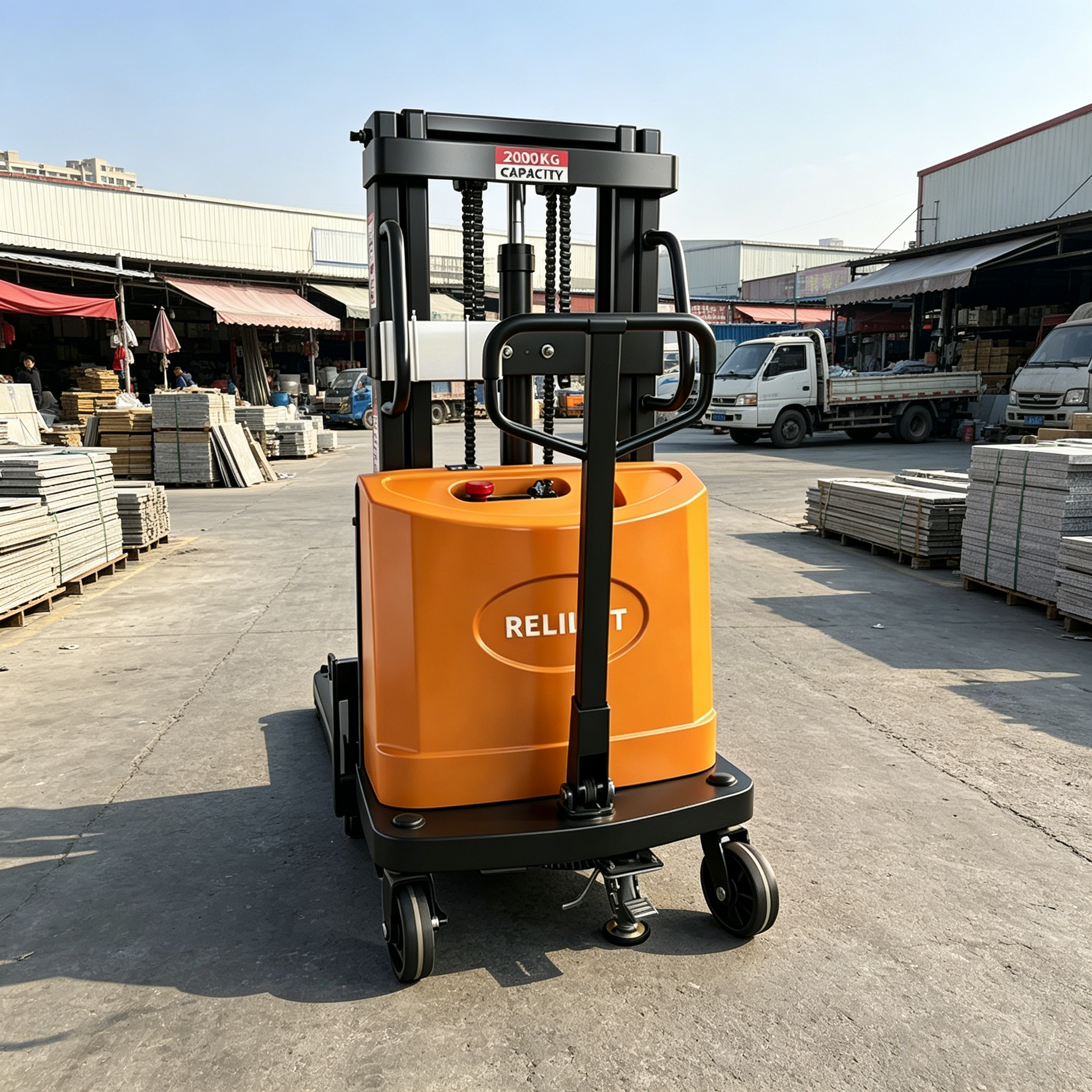

Product Images:
Application Scenarios:
- Small Warehouses: Perfect for businesses with limited space and low-frequency stacking needs.
- Manufacturing Workshops: Ideal for lifting heavy raw material molds or components onto workstations.
- Retail Back-of-House: Efficiently unloading pallets from delivery trucks and moving them to storage racks.
- Printing & Packaging: Precise positioning of heavy paper rolls or finished pallets.
