1.5t Electric Stacker
1. Low Speed/Brake Override Switch
2. Plexiglass Guard
3. Heavy-Duty Quick-Adjust Casters
4. Battery Side Roll-In/Roll-Out
5. Brushless Motor Design
6. Ergonomic Multi-Function Control Handle
7. Tight Turning Radius
8. AC Drive System, Motors & Controller
- Overview
- Specifications
- Features
- Gallery
- Application
- Recommended Products
The 1.5-ton electric stacker is a compact, agile solution designed for efficient low-to-medium-level lifting in confined spaces. With a lifting capacity of 1,500 kg (≈3,300 lbs), it handles pallets, drums, and loaded cages up to heights of 3–6 meters. Powered by a rechargeable battery, it operates with zero emissions and near-silent performance, making it ideal for indoor environments like warehouses, retail stores, and production lines.
Its slim profile and tight turning radius allow effortless navigation through narrow aisles. Operators control movement via an ergonomic handle with intuitive buttons for lifting/lowering, travel, and horn functions. Safety features include automatic parking brakes, overload protection, and anti-rollback systems. The wire-guided mast ensures stability during stacking.
Key advantages include minimal maintenance (no hydraulics/engine parts), low operating costs (electricity vs. fuel), and easy maneuverability for single-person operation. Unlike larger forklifts, it requires no special licensing in many regions. Perfect for repetitive vertical transport tasks, this stacker boosts productivity while maximizing space efficiency in busy facilities.
Specifications and Parameters:
 Max.load |
1.5 t |
 Fork Dimensions |
1150*185*60 mm |
 Size |
1950*820*2000mm |
 Lifting Height |
3000 mm |
 Turning Radius |
1400mm |
 Weight |
0.5 t |
 Color |
Yellow |
 Speed |
4 km/h |
 Charging time |
5-6h |
 Gradeability |
15% |
 Tyres |
PU wheel |
 Range of application |
Indoor / Outdoor |
Product Features:
1.Smart Battery Management System
The built-in Smart Battery Management System (BMS) continuously monitors the battery status, including voltage, current, and temperature, ensuring safe operation. The battery supporting fast charging with a charging time of no more than 4 hours.
2.High-Strength Structural Design
Made of high-strength steel, the body structure strength is increased by 30%, ensuring stability even under heavy loads. The chassis has been specially treated to enhance corrosion resistance, extending the service life.
3.Smart Safety System
Integrated with multiple intelligent safety features, including collision sensors, tilt detection, and emergency braking system. The response time of the collision sensors is less than 0.1 seconds, ensuring quick reaction in emergencies to protect the operator and equipment.
4.High-Precision Hydraulic System
Utilizes a high-precision hydraulic system, enhancing work accuracy and stability. The hydraulic system's response time is less than 0.2 seconds, ensuring quick response in complex working environments, thus improving work efficiency.
5.High-Efficiency Cooling System
Utilizes advanced cooling technology, improving the heat dissipation efficiency of the motor and controller by 20%, ensuring stable operation in high-temperature environments.

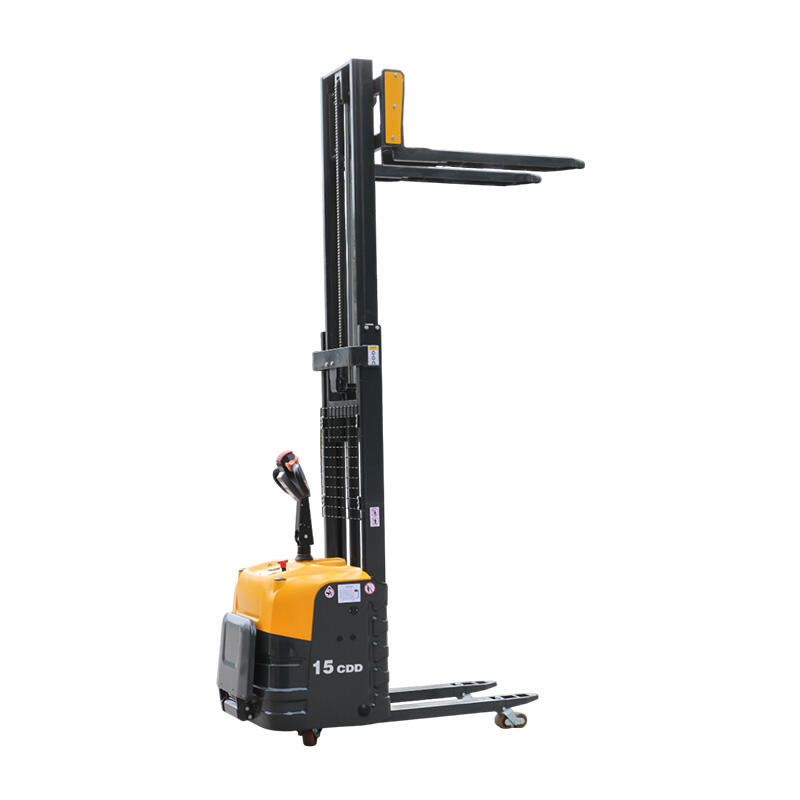

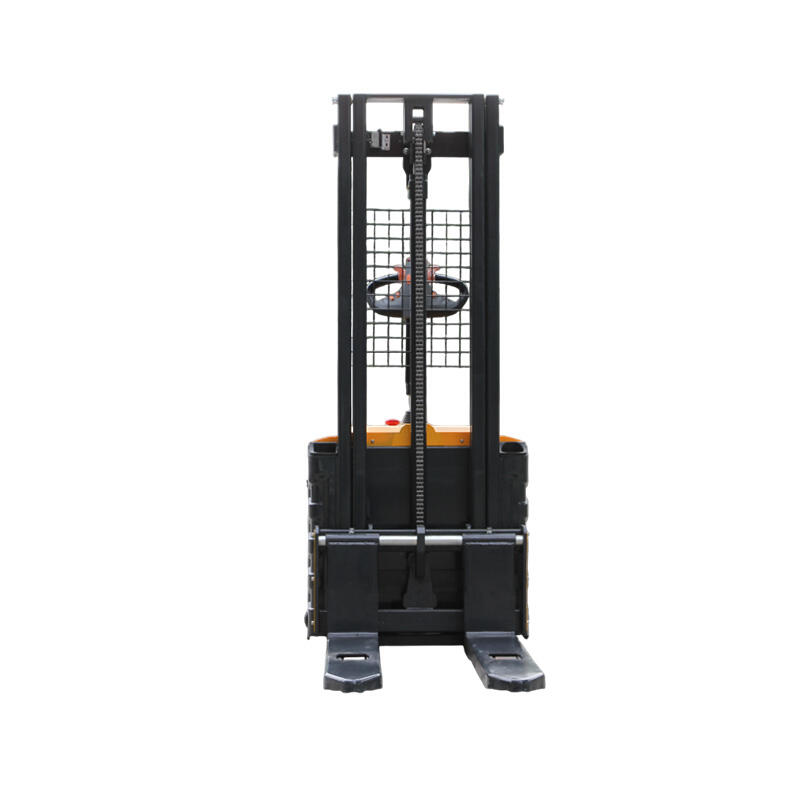

Product Images:
Application Scenarios:
- Warehousing & Logistics: In-warehouse handling of palletized goods during storage, sorting, and shipping.
- Supermarket & Distribution: Cargo loading/unloading and shelf replenishment in supermarkets and convenience stores.
- Factory Workshops: Material transfer between production lines and short-distance transportation of components.
- Cold Chain Environment: Explosion-proof and waterproof models available for cold storage and pharmaceutical warehousing.
