Relilift 1.5T Full Electric Stacker
- Optimized Space Utilization: Ultra-compact chassis design allows for a turning radius of just 1550mm, ideal for high-density storage.
- Precision Lifting Performance: Advanced hydraulic system ensures smooth lifting and lowering, protecting fragile goods.
- Zero-Maintenance Operation: Equipped with a brushless AC motor and high-capacity battery, reducing downtime and service costs.
- Multi-Layer Safety Protocols: Includes an emergency reverse "belly" button, automatic speed limiting during turns, and an anti-rolling back brake.
- Overview
- Specifications
- Features
- Gallery
- Application
- Recommended Products
The 1.5t Full Electric Stacker is a versatile material handling solution designed for medium-duty warehousing, manufacturing, and retail environments. With a robust 1500kg lifting capacity and customizable mast options (1.6m to 3.5m), it offers the perfect balance of power and agility for stacking pallets in high-rack systems or transporting goods across short distances.
Equipped with a high-efficiency AC motor and a maintenance-free battery system, this stacker ensures consistent performance throughout multi-shift operations. The ergonomic tiller head includes dual-hand controls, an emergency reverse button, and turtle speed mode, providing operators with precise control and enhanced safety in crowded environments.
Designed with a heavy-duty steel chassis and a low center of gravity, the stacker provides exceptional stability even at maximum lift heights. Its compact turning radius and intuitive handling significantly reduce operator fatigue while maximizing warehouse throughput, making it an essential asset for modern logistics operations.
Specifications and Parameters:
 Max.load |
1.5 t |
 Fork Dimensions |
1150*185*60 mm |
 Size |
1950*820*2000mm |
 Lifting Height |
3000 mm |
 Turning Radius |
1400mm |
 Weight |
0.6 t |
 Color |
Green |
 Speed |
4 km/h |
 Charging time |
5-6h |
 Gradeability |
15% |
 Tyres |
PU wheel |
 Range of application |
Indoor / Outdoor |
Product Features:
1. Ergonomic Multi-functional Handle The ergonomic tiller head is designed for comfort and ease of use. It integrates all controls—lifting, lowering, speed, and horn—into a single interface, allowing for single-handed operation and reducing strain during long shifts.
2. Robust Chassis & Mast Construction Built with high-grade steel, the reinforced chassis and C-channel mast ensure structural integrity and minimal deflection during heavy lifting, providing long-term reliability in demanding industrial settings.
3. Advanced Safety Systems Features including automatic speed reduction on curves, an electromagnetic braking system, and a belly-button reverse switch ensure the highest level of safety for both the operator and surrounding personnel.
4. High-Performance AC Motor The maintenance-free AC drive motor delivers constant power and torque, enabling smooth acceleration and excellent gradeability while reducing total cost of ownership over time.
5. Easy Maintenance Access A simplified internal layout and removable cover provide quick access to key components like the motor, controller, and battery, streamlining routine inspections and reducing downtime.

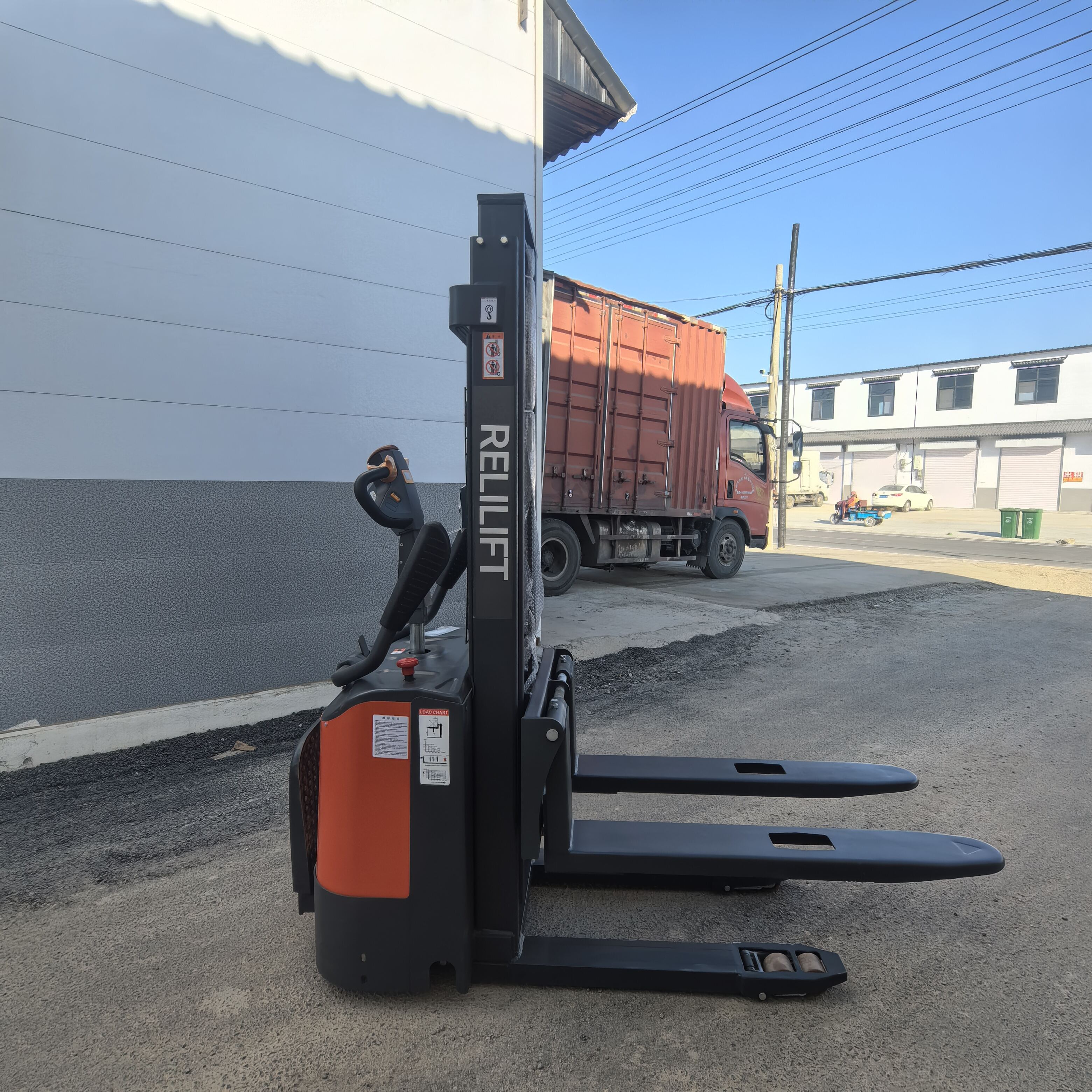

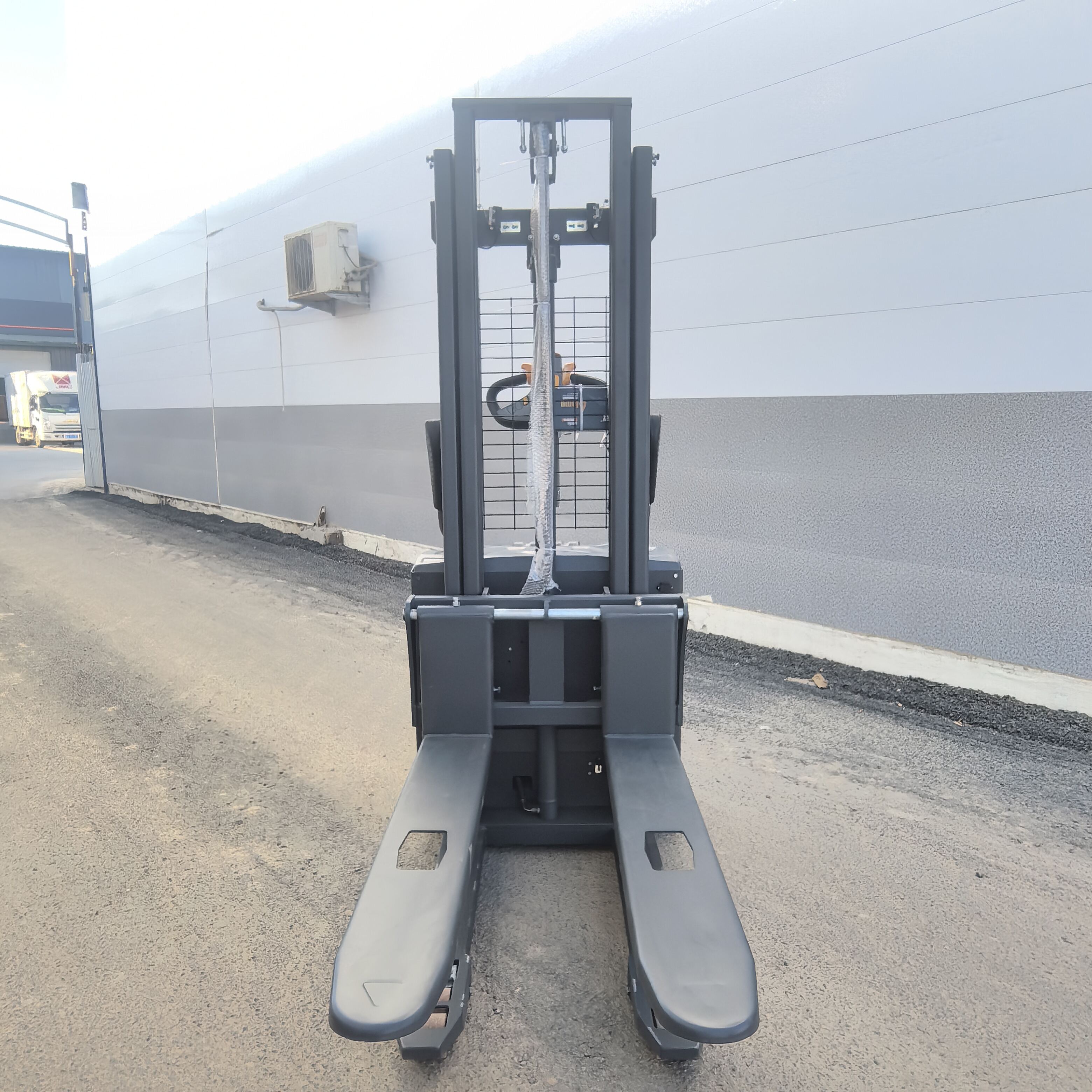

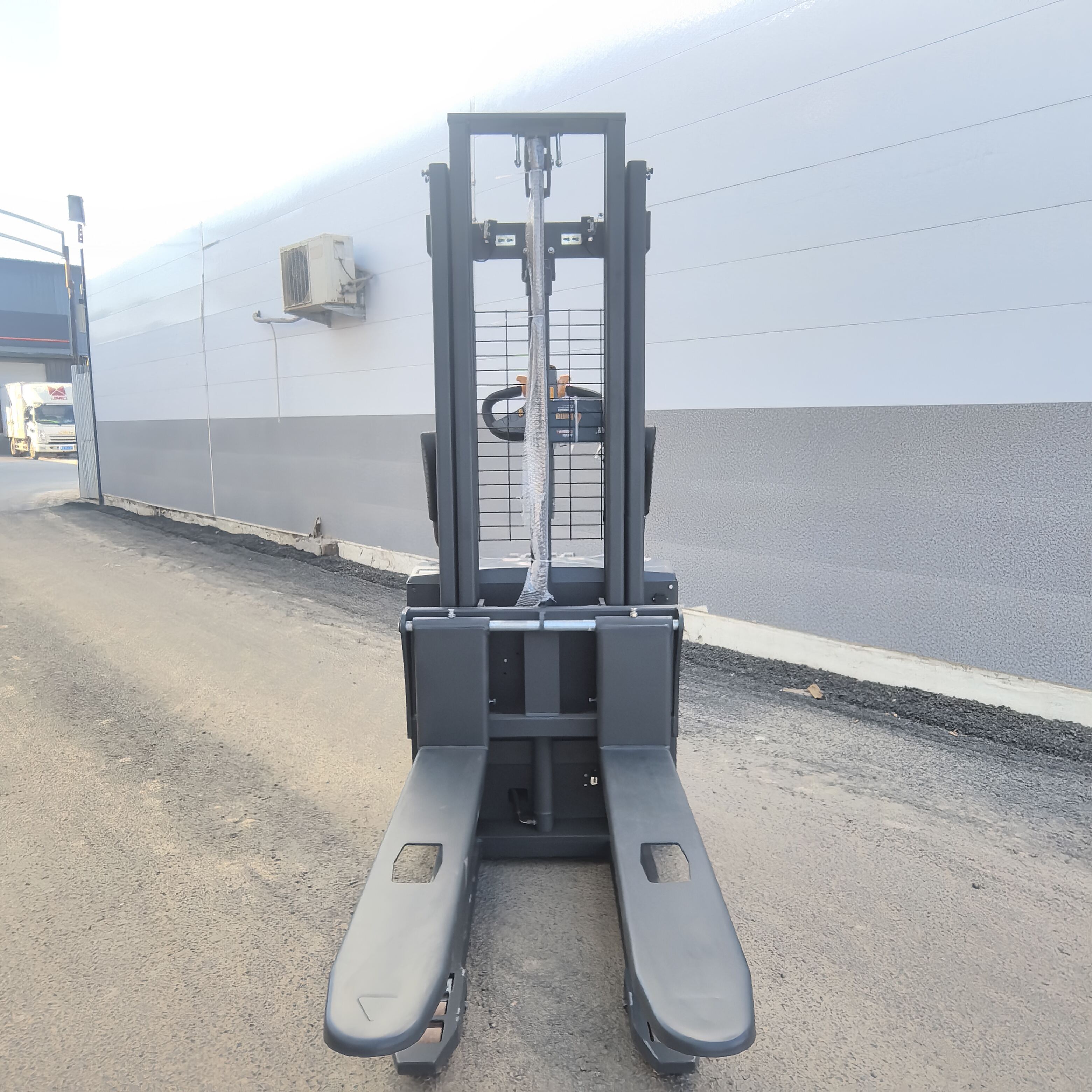

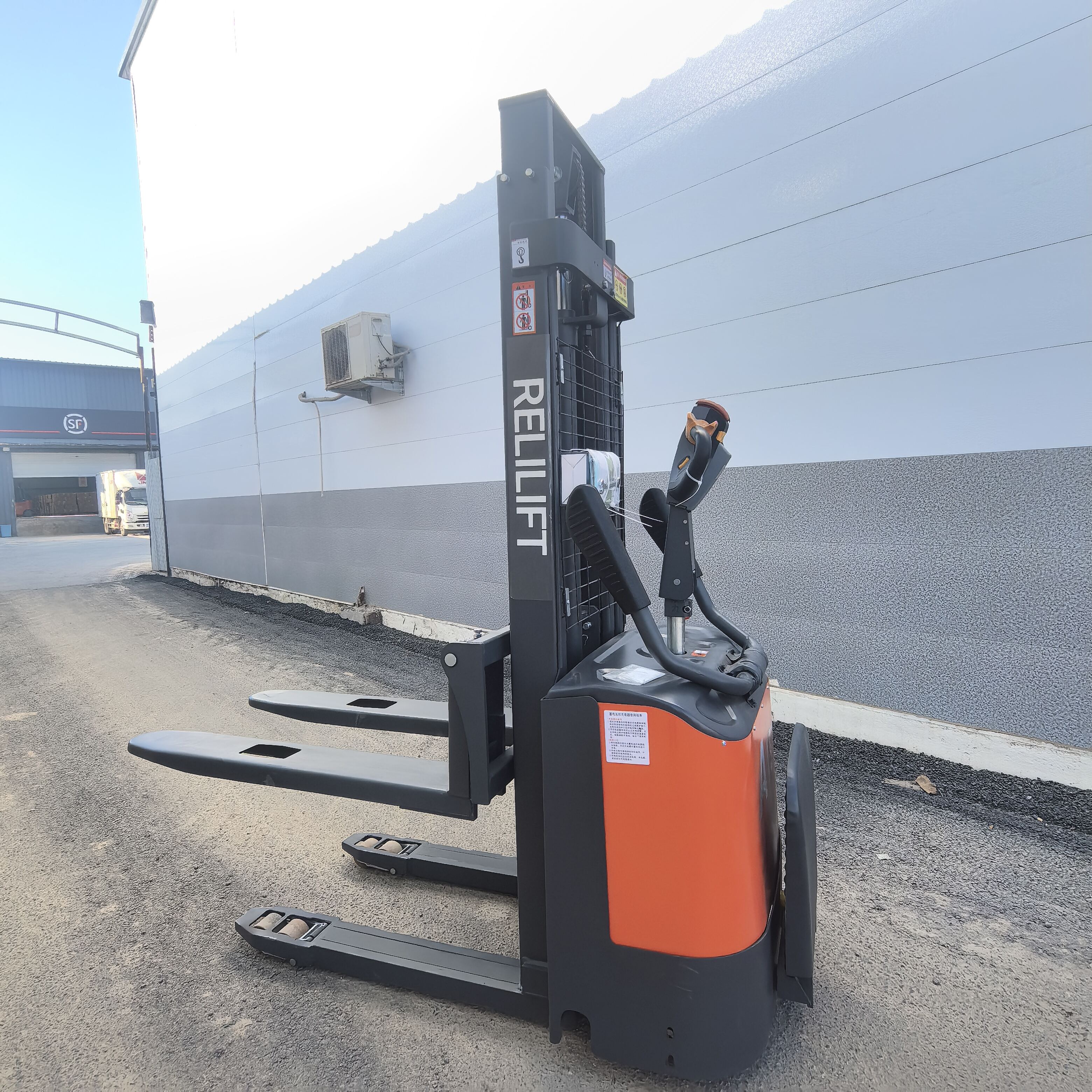

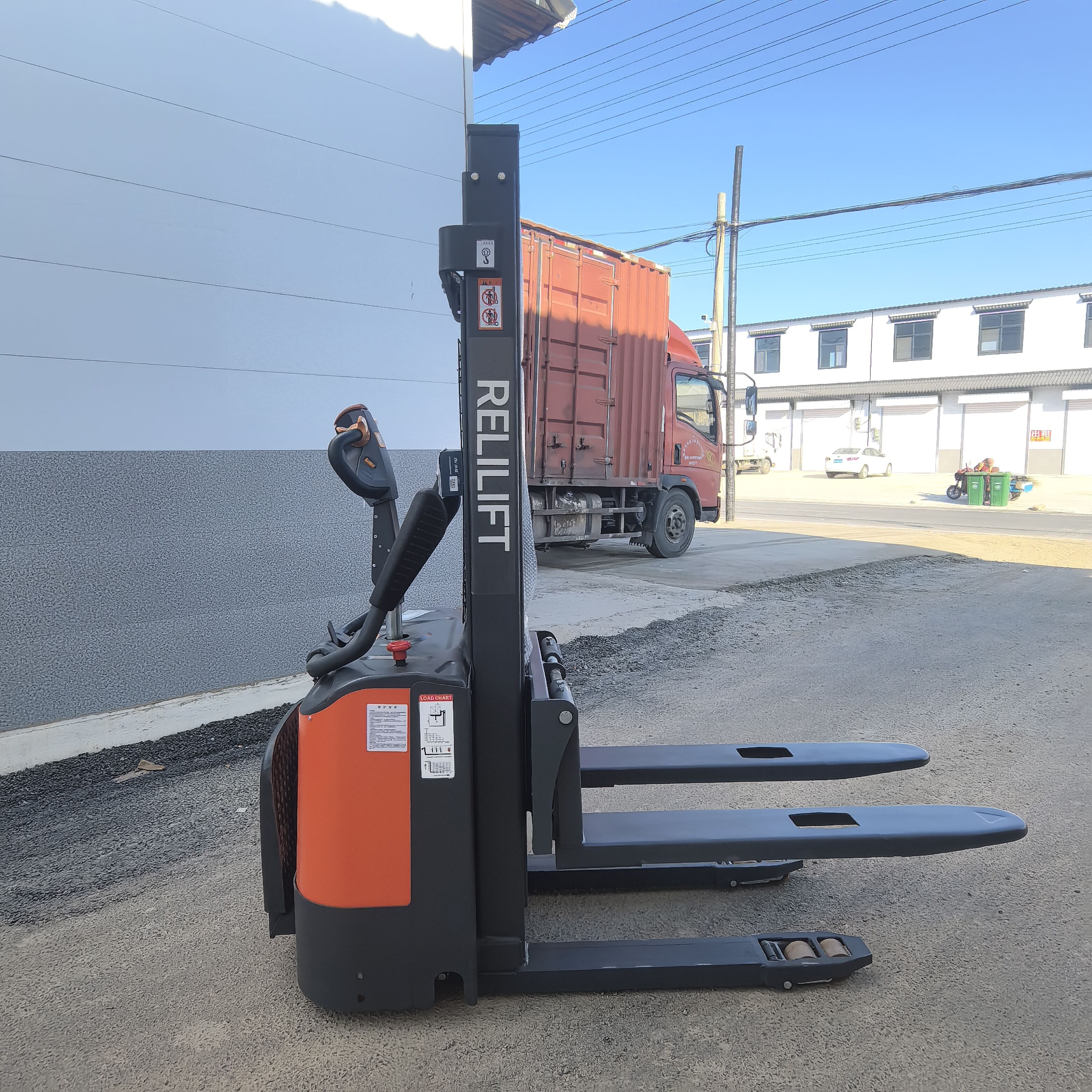

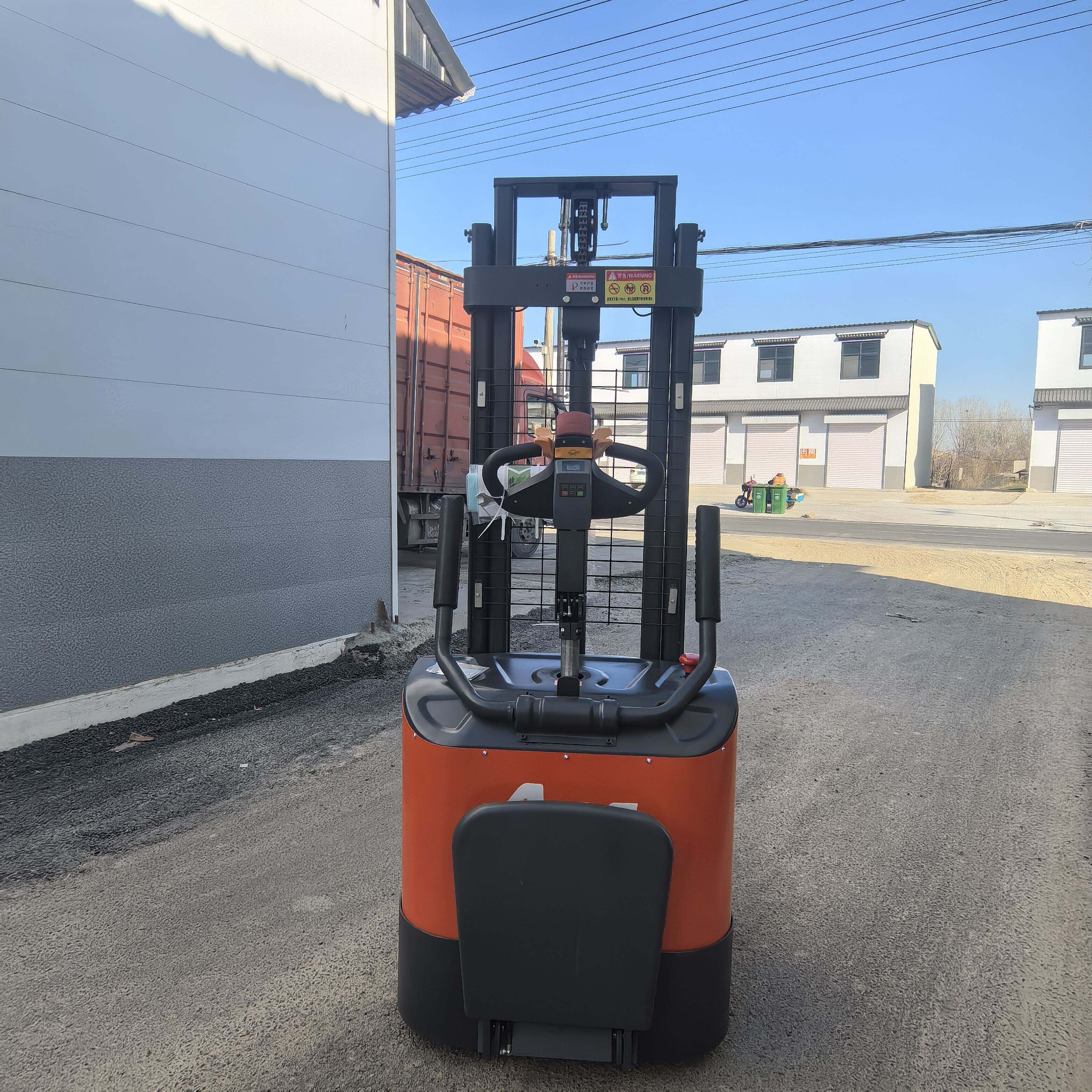

Product Images:
Application Scenarios:
- E-commerce Fulfillment: Rapid pallet moving and shelf restocking.
- Cold Chain Storage: Efficient handling in temperature-controlled environments.
- Manufacturing Lines: Feeding raw materials to production areas.
- Third-Party Logistics (3PL): Versatile tool for diverse cargo handling.
