Electric Pallet Truck
1. Powered travelling, lifting and lowering reduces strain on operators
2. Compact, lightweight design is easy to maneuver
3. Durable steel frame and protective cove
4. Ergonomic, multi-function handle with LCD display
5. Maximize efficiency in tight spaces
6. Utilize brake release in case of emergency
7. 60-second drive wheel replacement
- Overview
- Specifications
- Features
- Gallery
- Application
- Recommended Products
An electric pallet truck, also known as a powered pallet jack or walkie, is a battery-powered material handling device designed for efficiently moving palletized loads over relatively short, level distances. It replaces strenuous manual pushing and pumping with electric power.
The operator stands on a platform at the rear, controlling movement via a tiller arm. This arm houses controls for forward/reverse travel, steering, and lifting/lowering the forks. To move a load, the operator slides the forks into the pallet cavity, uses the electric pump to raise the forks slightly (just enough to clear the floor), then drives the truck to the desired location. Lowering the forks gently deposits the pallet.
Key advantages include significantly reduced operator effort and fatigue compared to manual jacks, increased productivity, and easier handling of heavier loads (typically ranging from 1,500 to 5,500 kg or more). They are essential tools in warehouses, distribution centers, retail stockrooms, and manufacturing facilities for tasks like loading/unloading trucks and transporting goods within a facility. Their compact design offers excellent maneuverability in tight aisles.
Specifications and Parameters:
 max.load |
2 t |
 Fork Length |
1150*160 mm |
 Size |
1750*550*1250mm |
 Lifting Height |
195 mm |
 Weight |
175kg |
 Color |
Red |
 Speed |
10 km/h |
 Protection class |
IPx4 |
 Range of application |
Indoor / Outdoor |
Product Features:
1.High Load Capacity
The electric pallet truck can handle a maximum load of 2000kg, suitable for heavy-duty cargo transportation, ensuring efficient operation
2.Efficient Battery System
Equipped with high-performance lithium batteries, it can operate continuously for 8 hours on a single charge, ensuring strong endurance and reducing the need for frequent recharging, thus improving work efficiency.
3.Durable Materials
The body is made of high-strength steel, with strong impact resistance and a long service life, suitable for long-term heavy-duty use
4.Low Noise Design
Equipped with a silent motor and vibration reduction technology, it operates with low noise, minimizing the impact on the working environment and improving work comfort
5.Fast Charging Technology
Supports fast charging technology, allowing for quick recharging in a short time, reducing waiting time and improving work efficiency.
6.Multiple Safety Protections
Equipped with multiple safety protection devices, including an emergency stop button, anti-slip tires, and automatic power-off protection, ensuring operational safety.

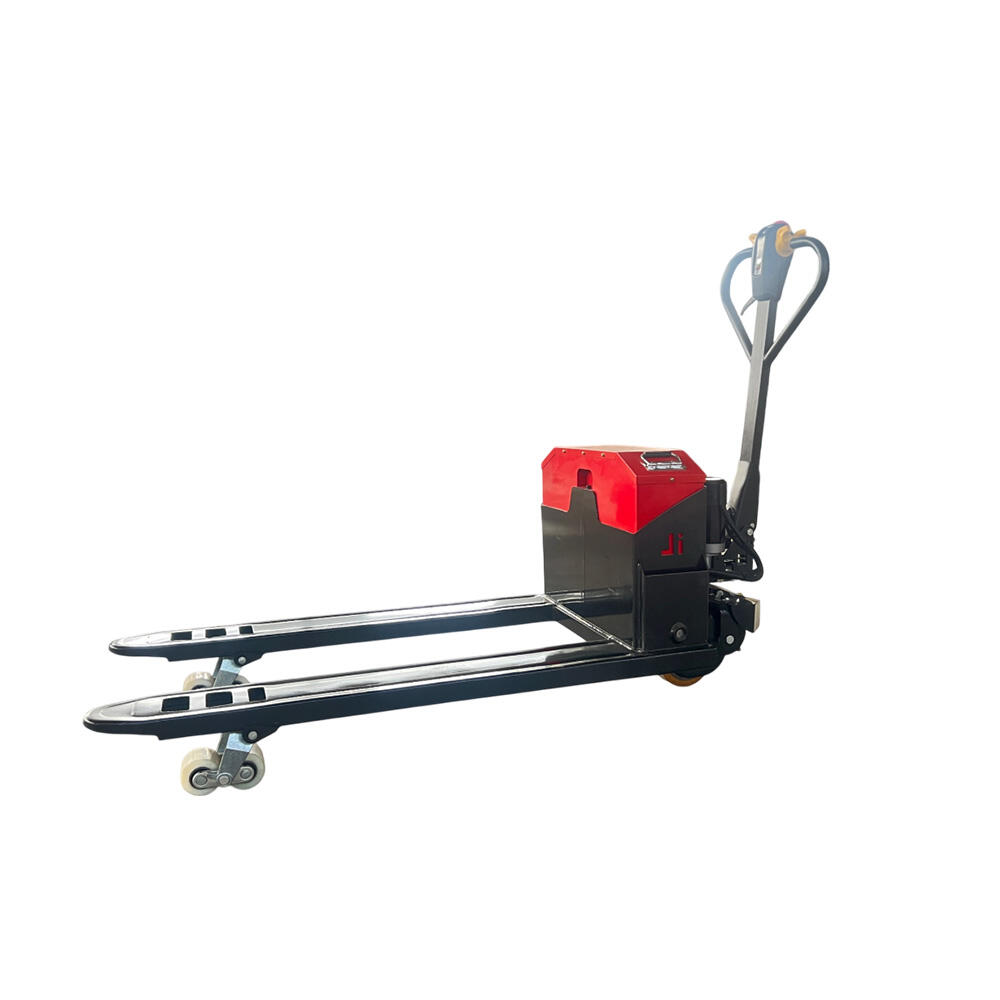

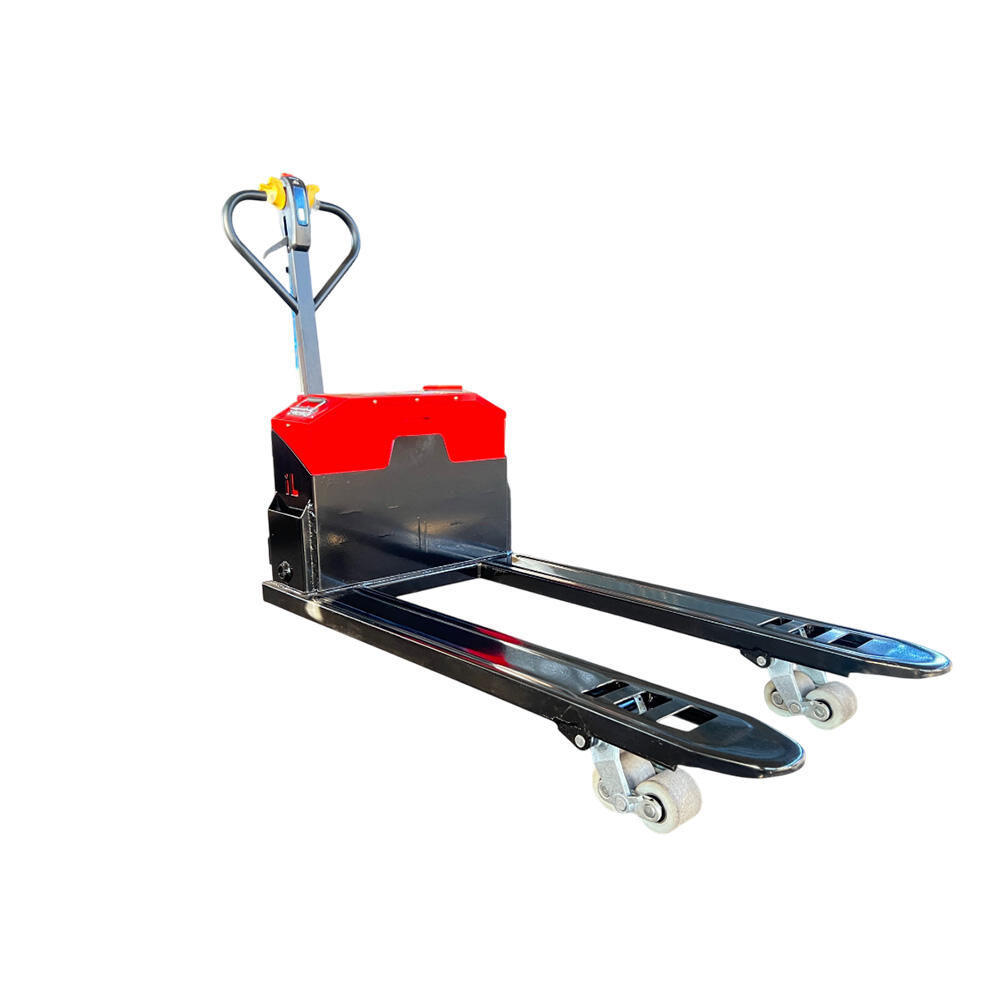

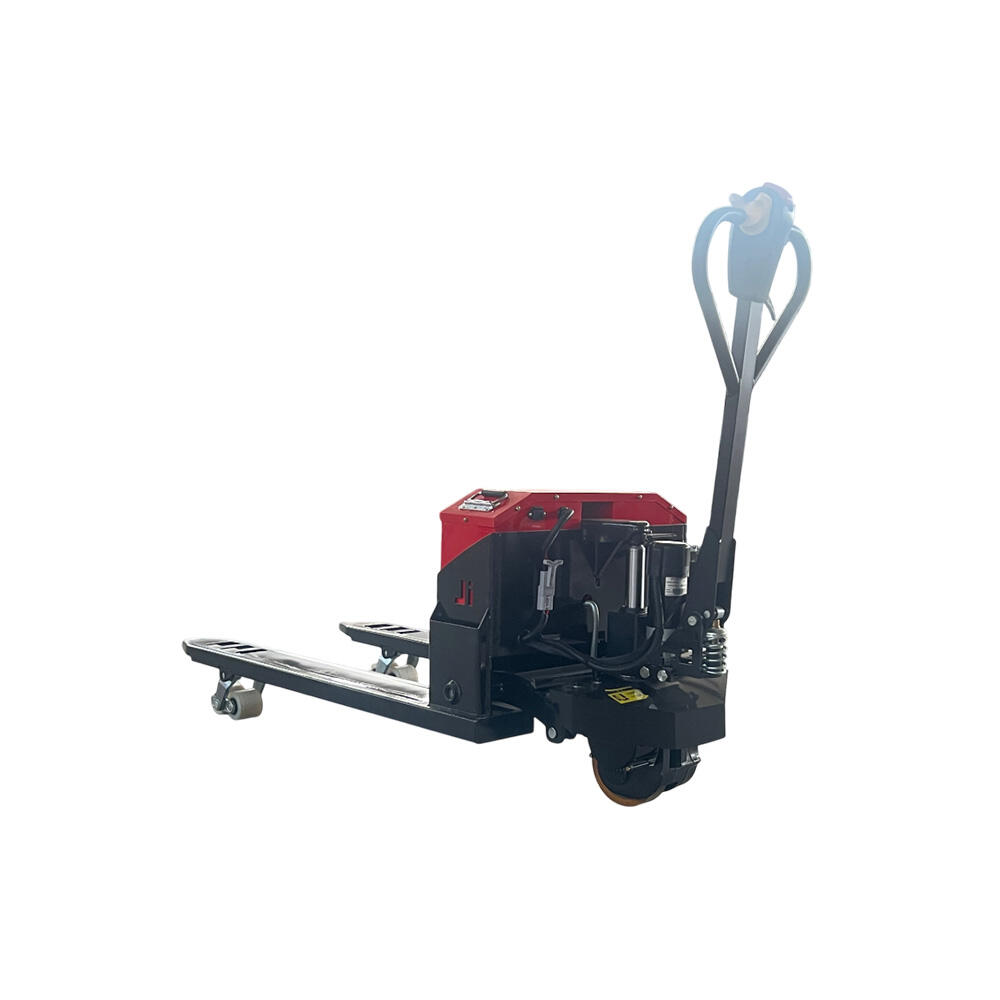

Product Images:
Application Scenarios:
- Warehousing & Logistics Centers: Pallet handling, stacking, racking operations.
- Manufacturing Plants: Line feeding, finished goods transfer, raw material handling.
- Wholesale & Retail: Goods handling in large distribution centers.
- Cold Storage Warehouses: Specially designed electric trucks for sub-zero environments.
