Stand On Electric 3-way Forklift
- Three-way movable fork carriage
- Ultra-narrow aisle adaptable
- High-lift mast structure
- Rotatable & shiftable forks
- Ergonomic operation design
- Multi-safety protection devices
- Overview
- Specifications
- Features
- Gallery
- Application
- Recommended Products
A 3-way forklift is a specialized material handling tool for ultra-narrow aisle warehousing, and the 3-way forklift features unique three-directional movement (forward, backward, lateral) with rotatable, shiftable forks, allowing the 3-way forklift to work in aisles as narrow as 1.6 meters without full-body turning. Boasting a 1000-1500kg load capacity and a maximum lifting height of 14 meters, the 3-way forklift maximizes vertical and horizontal storage density for intensive warehousing systems, and the 3-way forklift is equipped with energy-saving tech and safety devices like anti-tip systems and collision alarms for stable, cost-effective operation. The 3-way forklift is humanely designed with ergonomic controls for easy operation, and this versatile 3-way forklift is widely used in logistics, pharmaceutical, food and cold chain storage, becoming an essential equipment for enterprises optimizing warehouse space and material handling efficiency.
Specifications and Parameters:
 Max.load |
2 t |
 Fork Dimensions |
1070*122*40 mm |
 Size |
2405*1195*2260mm |
 Lifting Height |
4500 mm |
 Turning Radius |
1680mm |
 Weight |
3.05 t |
 Color |
range |
 Speed |
10 km/h |
 Batterie |
Li-Ion |
 Charging time |
5-6h |
 Gradeability |
15% |
 Tyres |
PU |
 Protection class |
IPx4 |
 Range of application |
Indoor / Outdoor |
Product Features:
- Ultra-narrow aisle operation, applicable for aisles as narrow as 1.6 meters to maximize warehouse storage density
- Unique 3-directional movement (forward/backward/lateral) with rotatable shiftable forks, no full-body turning for loading/unloading
- High lifting performance, max lifting height up to 14 meters with 1000-1500kg stable load capacity
- Energy-saving configuration with regenerative braking and descent energy recovery, reducing operating costs and extending working hours
- Multi-layer safety protection, equipped with anti-tip systems, load sensors and collision avoidance alarms for high-altitude operation safety

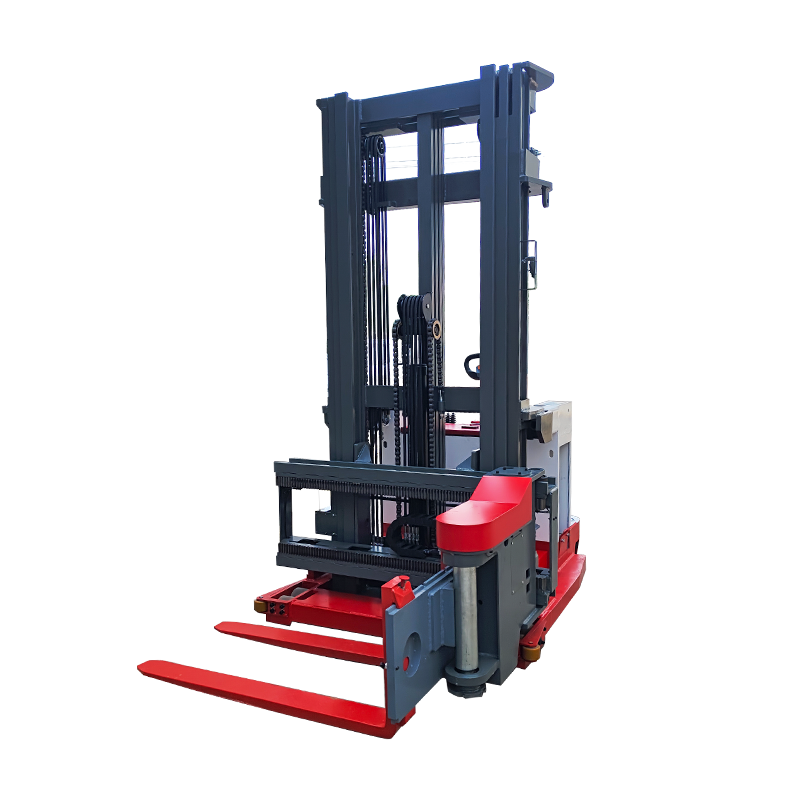

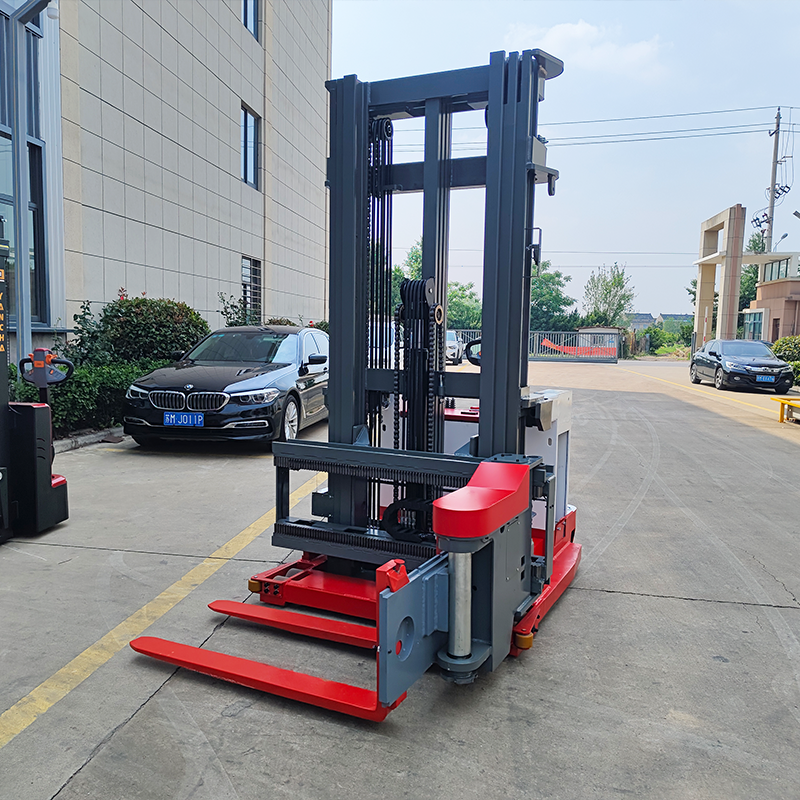

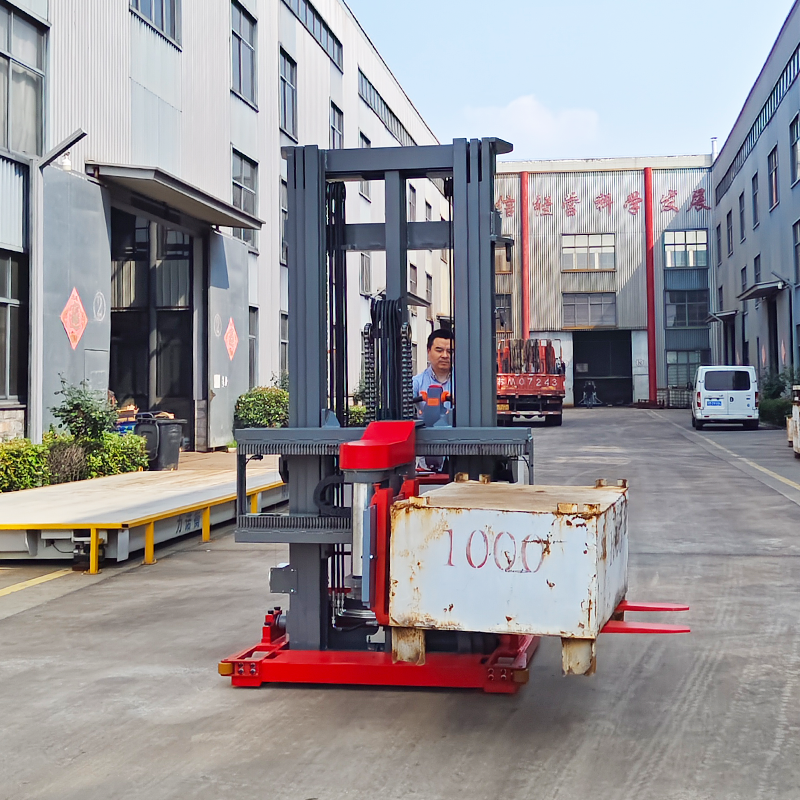

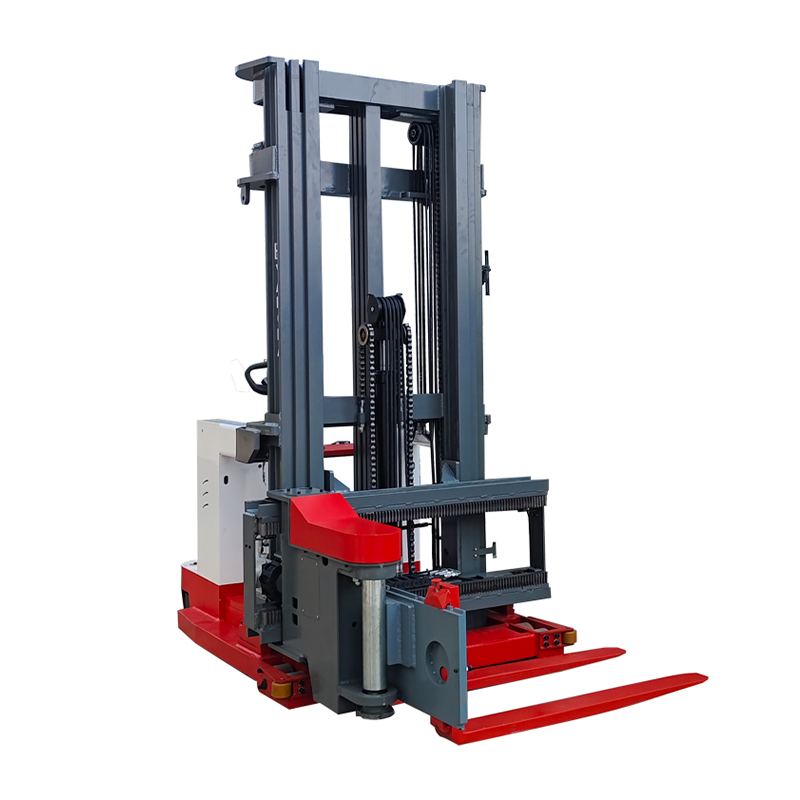

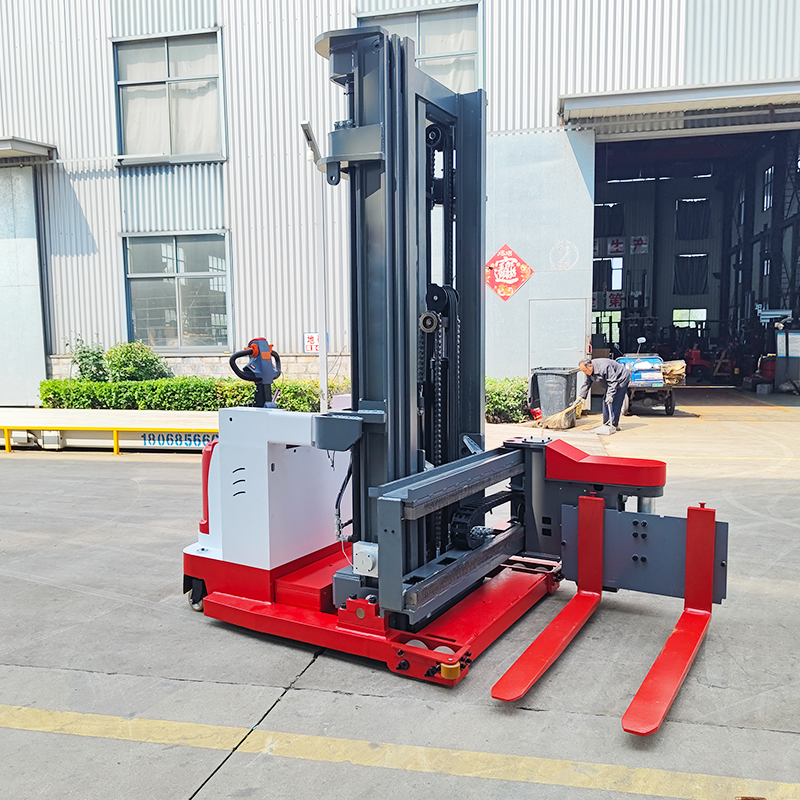

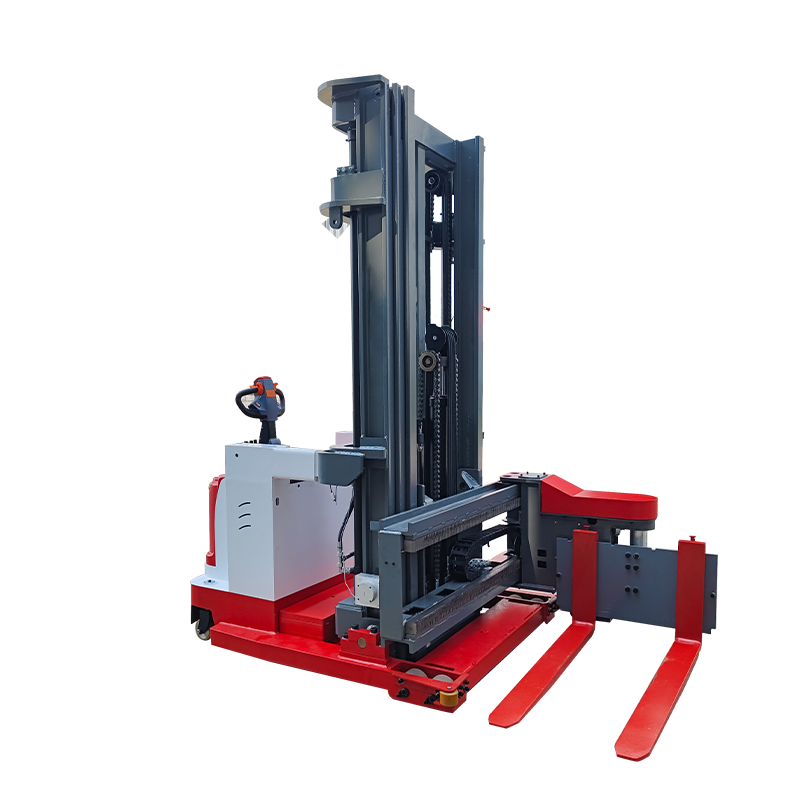

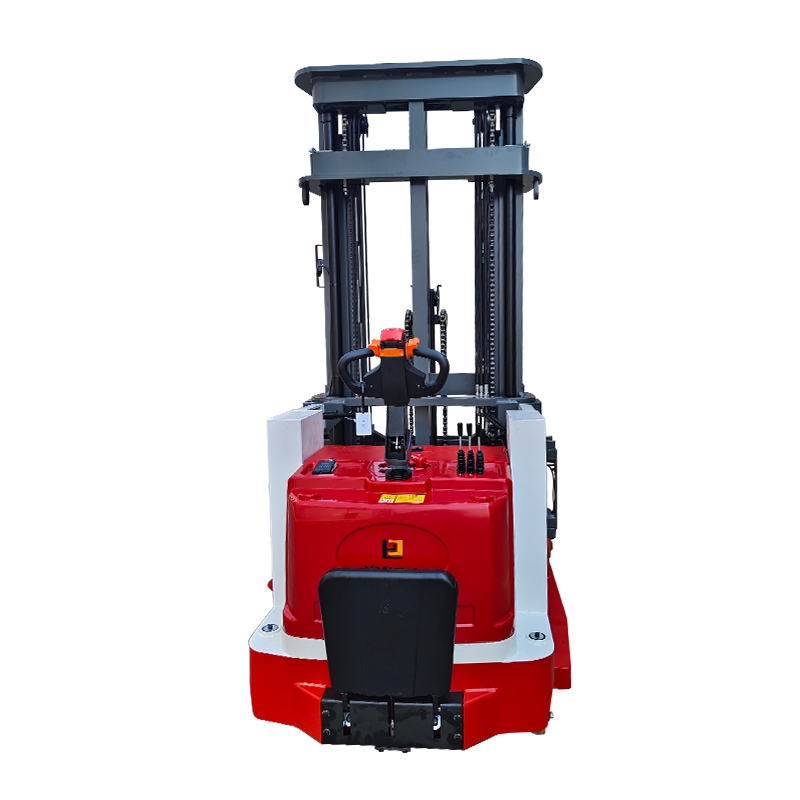

Product Images:
Application Scenarios:
- Cold chain storage warehouses with strict space utilization requirements and low-temperature working environments
- Pharmaceutical and medical material warehouses with standardized storage and high turnover of delicate goods
- E-commerce and express logistics central warehouses with high storage density and frequent cargo handling
- Food and beverage distribution warehouses with classified storage of bulk and packaged goods
