Towed Scissor Lift
- Working Height: 4m to 12m (16m custom models available)
- Platform Height: 2m to 10m (when scissor fully extended)
- Load Capacity: 250kg to 500kg (varies by model)
- Drive Mode: No independent drive, requires external towing (towing speed ≤5km/h)
- Towing Interface: Standard ball tow hook/tow bar (compatible with forklifts, tractors)
- Lifting Power: Hydraulic drive (electric pump/manual pump optional)
- Platform Size: 1.0-1.8m (L) × 0.7-1.0m (W) (foldable guardrails for space saving)
- Power Source: 220V external power (electric hydraulic model), manual hydraulic model requires no power
- Ground Requirement: Flat hardened surface (optional anti-slip outriggers for slight unevenness)
- Compliance: Meets safety standards such as GB 25849, CE, EN 280
- Ikhtisar
- Specifications
- Fitur
- Geollar
- Produk Rekomendasi
The towed scissor lift is a high-altitude operation equipment that needs to be towed and moved by external devices (such as forklifts or trucks), and it achieves platform lifting and lowering through a scissor mechanical structure. The equipment features a simple structure, low cost and easy maintenance. It is suitable for fixed operation areas or high-altitude operation scenarios that need to be moved with traction tools, providing safe and efficient lifting solutions for warehouse maintenance, venue maintenance, industrial installation, etc.
Specifications and Parameters:
| Working Height | 4m to 12m (16m custom models available) |
| Platform Height | 2m to 10m (when scissor fully extended) |
| Load Capacity | 250kg to 500kg (varies by model) |
| Drive Mode | No independent drive, requires external towing (towing speed ≤5km/h) |
| Towing Interface | Standard ball tow hook/tow bar (compatible with forklifts, tractors) |
| Lifting Power | Hydraulic drive (electric pump/manual pump optional) |
| Platform Size | 1.0-1.8m (L) × 0.7-1.0m (W) (foldable guardrails for space saving) |
| Power Source | 220V external power (electric hydraulic model), manual hydraulic model requires no power |
| Ground Requirement | Flat hardened surface (optional anti-slip outriggers for slight unevenness) |
| Compliance | Meets safety standards such as GB 25849, CE, EN 280 |
Product Features:
1. Economic & Practical:
No independent drive system, purchase cost 40% lower than self-propelled models, suitable for budget-constrained scenarios.
2. Easy Operation:
One-key lifting for electric models, manual pumping via handle for manual models, no professional training needed.
3. Convenient Maintenance:
Simple structure with core components only hydraulic system and scissor mechanism, low daily maintenance cost.
4. Flexible Transportation:
Short-distance movement via tractor, or direct loading onto trucks (light equipment weight).
5. Safety Assurance:
Equipped with anti-tilt outriggers, emergency descent valve, platform guardrail locking device, and load limit markings.
6.Scene Adaptability:
Electric models suit indoor powered scenes, manual models work in power-free environments (e.g., outdoor construction sites).
Application Scenarios:
- Warehousing & Logistics: High-bay shelf restocking, top ventilation equipment repair in warehouses (fixed shelf areas).
- Industrial Maintenance: Equipment installation and pipeline repair in workshops (short-distance movement with forklifts).
- Venue Engineering: Stadium seat maintenance, exhibition center banner hanging (temporary mobile points).
- Municipal Minor Repairs: Streetlight bulb replacement, small billboard installation (short-distance multi-point work).
- Agricultural Scenarios: Greenhouse top maintenance, grain storage elevated equipment repair (towing with agricultural tractors).

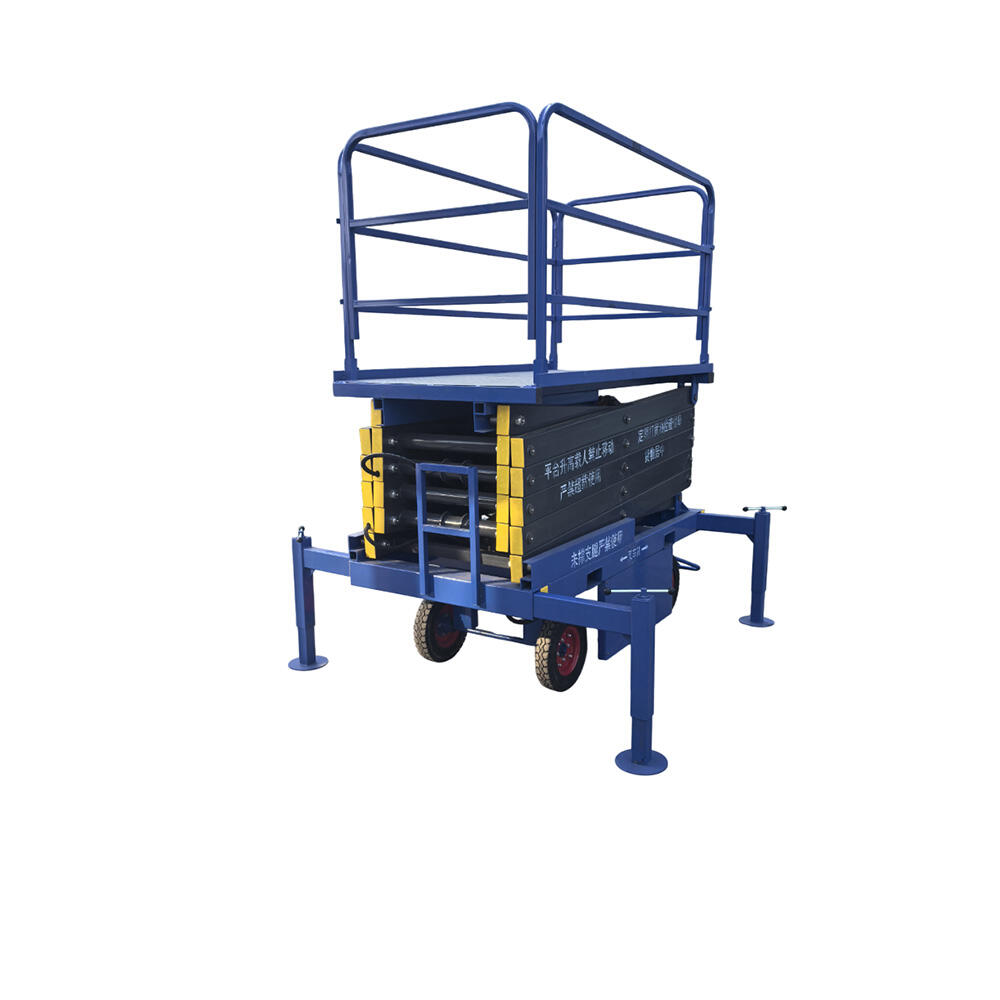

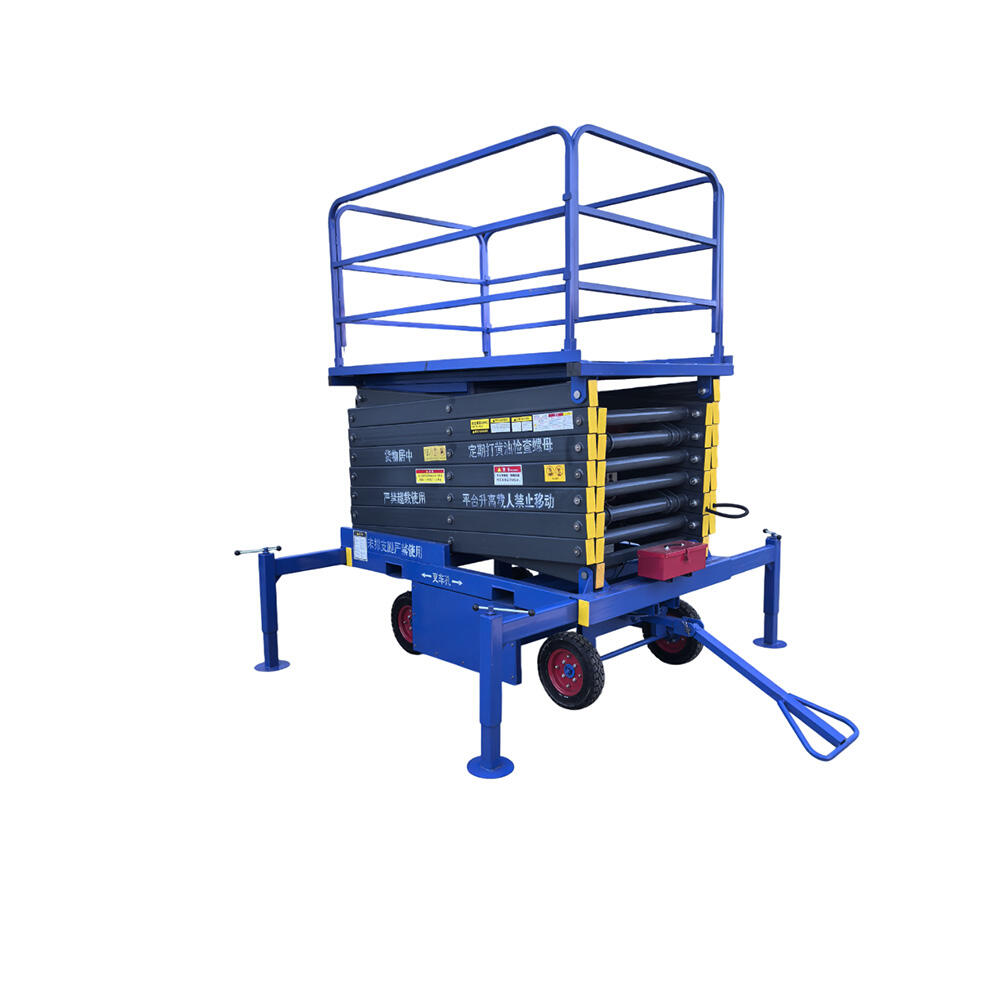

Product Images:
Frequently Asked Questions (FAQ):
Q: How does the towed scissor lift move?
A: Connect to power equipment like forklifts or tractors via the tow hook or bar at the rear of the equipment, which is towed by external equipment. Ensure the platform is at the minimum height and locked during movement.
Q: Does the equipment require a power source?
A: Electric hydraulic models need 220V external power or built-in batteries (lithium battery optional), while manual hydraulic models require no power, using a handle for manual pumping to lift/lower.
Q: What is the maximum towing speed?
A: The recommended towing speed is no more than 5km/h, and reduce to below 3km/h on complex roads to ensure equipment stability.
Q: Can it be used on slopes?
A: Operate on flat ground with a slope ≤2°. When towing on slopes, use low gear and ensure the towing equipment has reliable braking.
