The 2-Ton Manual Hydraulic Pallet Jack with Integrated Scale is a revolutionary material handling tool that combines the core functions of a traditional manual pallet truck with precision electronic weighing. Also known as a "Pallet Jack Scale" or "Forklift Scale", this equipment eliminates the need for separate weighing stations, allowing operators to lift, transport, and weigh palletized goods in one seamless operation.

At its heart, the device leverages robust manual hydraulics to lift loads up to 2,000 kg . The integrated weighing system functions by using high-precision load cells (sensors) installed within the frame . When the pallet is lifted, the pressure is converted into an electrical signal, processed, and displayed instantly on a digital readout mounted on the handle. This design ensures that weighing can be performed accurately at any lifting height.

Specifications and Parameters:

max.load	2 t
Fork Length	1150*160 mm
Size	17505501250mm
Lifting Height	195 mm
Weight	175kg
Color	White
Speed	10 km/h
Protection class	IPx4
Range of application	Indoor / Outdoor

Product Features:

- Dual Functionality: Combines robust load transportation with instant weight measurement. The weighing result is displayed within seconds upon lifting.
- Capacity & Precision: Has a standard load capacity of 2 tons (2000 kg). The weighing system typically offers high accuracy, with deviations as low as ±0.1% to ±0.5% of the load.
- Robust Construction: The main structure is made of carbon steel with a powder-coated or painted finish for enhanced corrosion resistance . Options for full stainless steel construction are available for harsh environments like food processing or cold storage.
- User-Friendly Design:
  - Equipped with a large, easy-to-read LCD or LED display with backlight .
  - Features polyurethane or nylon wheels for smooth, low-effort maneuvering and floor protection .
  - Powered by a built-in rechargeable battery for extended operation .
- Smart Functions:
  - Includes essential weighing functions such as tare, zeroing, and accumulation.
  - Can be connected to a mini portable printer for on-the-spot label or receipt printing .
  - Explosion-proof models are offered for use in hazardous areas.

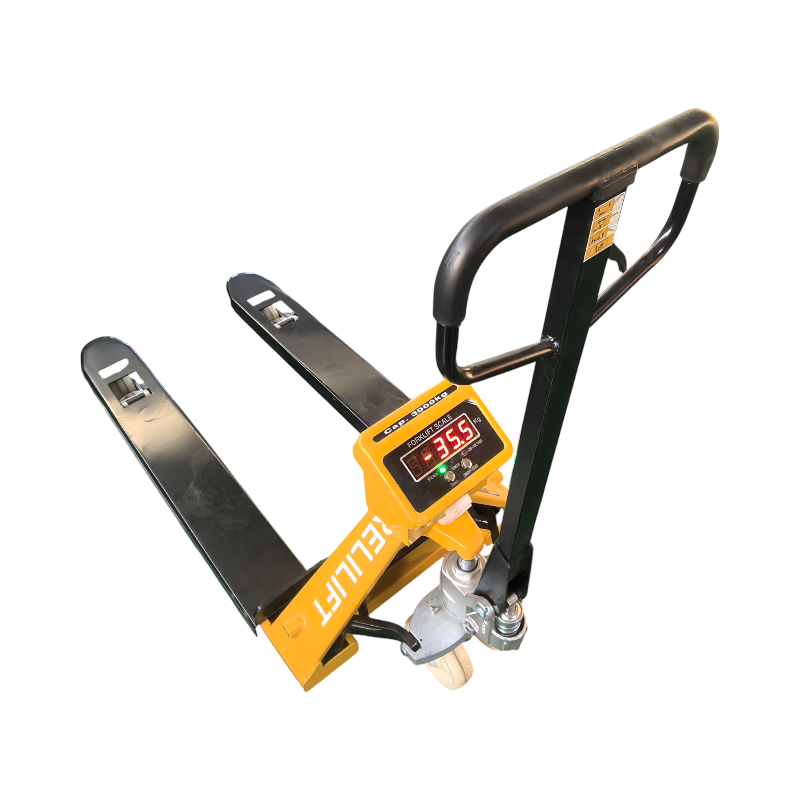

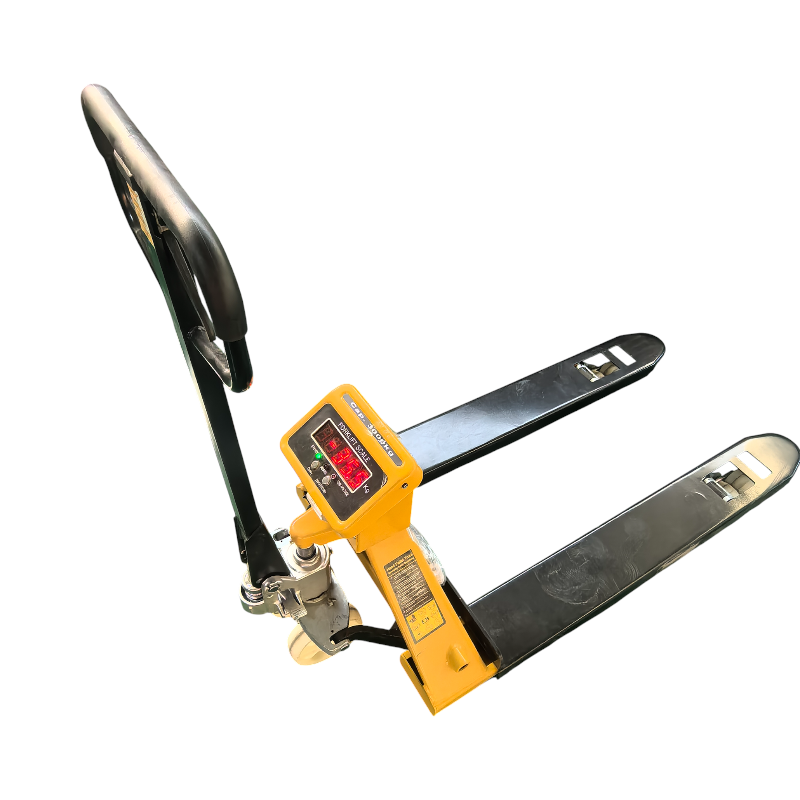

Product Images:

Application Scenarios:

Warehousing & Logistics: Ideal for mobile weighing during goods receiving, dispatch, and sorting, significantly speeding up processes and enabling instant freight calculation .
Manufacturing & Workshops: Facilitates real-time production data collection by weighing materials during inter-process transfer without interrupting the workflow .
Commercial Distribution & Cold Chain: Perfect for wholesale operations and fresh goods delivery where transactional weighing is required during movement. Stainless steel variants suit cold storage applications .
