2 Ton Full Electric Stacker - 4.5m Triplex Mast with Side Stabilizers | Yellow Heavy-Duty Series
- 2000kg Heavy-Duty Capacity: Engineered for high-intensity pallet handling.
- 4.5m Vertical Reach: Ideal for high-rack storage and tall warehouse ceilings.
- Triplex Full-Free Lift Mast: High reach with low collapsed height for standard doors.
- Integrated Side Stabilizers: Provides maximum lateral stability when lifting at peak heights.
- Industrial Yellow Finish: High-visibility safety coating for busy logistics environments.
- Advanced AC Drive System: Powerful, low-maintenance motor for consistent performance.
- Proportional Lifting Control: Precision fork placement for fragile or heavy loads.
- Reinforced Safety Chassis: Extra-thick steel construction for zero-sway operation.
- Overview
- Specifications
- Features
- Gallery
- Application
- Recommended Products
- Does it fit through standard doors? Yes. Despite the 4.5m reach, the triplex mast design ensures a low collapsed height, allowing it to navigate through standard warehouse entrances easily.
- Is it safe for high-level stacking? Absolutely. The combination of side stabilizers and an automatic speed-reduction system (which slows drive speed when forks are raised) ensures maximum operator and cargo safety.
Engineered for High-Reach Stability: The 2t 4.5m Yellow Series The Relilift RL-2045 Yellow Series is our premium heavy-duty electric stacker designed for warehouses that require high-density vertical storage. With a robust 2000kg (2.0 Ton) lifting capacity and a specialized 4500mm (4.5m) reach, this model bridges the gap between standard walkie stackers and full-sized reach trucks.
The Triplex Mast & Side Support Advantage What sets this model apart is the Triplex (Three-Stage) Mast. This configuration allows for "Full Free Lift," meaning the forks can rise significantly before the mast begins to extend, making it perfect for facilities with low overhead clearances or mezzanine levels. To ensure absolute safety at the 4.5m peak, we have integrated Side Stabilizers (Outriggers). These supports deploy to widen the footprint, virtually eliminating the lateral swaying common in standard stackers when handling heavy loads at maximum height.
Built for Reliability and Safety
Specifications and Parameters:
 Max.load |
2 t |
 Fork Dimensions |
1130*180*60 mm |
 Size |
2040*820*2350mm |
 Lifting Height |
4500 mm |
 Turning Radius |
1400mm |
 Weight |
0.67 t |
 Color |
Yellow |
 Speed |
4 km/h |
 MOQ |
1 set |
 Gradeability |
15% |
 Tyres |
PU wheel |
 Range of application |
Indoor / Outdoor |
Product Features:
- Automatic Side Stabilizer Technology: Safety is paramount when lifting 2 tons to 4.5 meters. Our integrated side supports significantly increase the lateral stability of the unit. These stabilizers provide a wide, secure base that prevents "mast sway," giving operators the confidence to stack at maximum heights with high precision.
- Triplex Full-Free Lift Mast System: The three-stage mast is made from premium German-engineered steel profiles. The "Full Free Lift" capability allows the operator to lift loads up to 1.5 meters without increasing the overall height of the machine—essential for working in containers or under low-hanging mezzanines.
- High-Torque AC Drive & 2.2kW Lift Motor: Equipped with a high-performance AC traction motor, this stacker provides smooth acceleration and strong climbing ability. The 2.2kW heavy-duty hydraulic pump ensures fast, quiet lifting speeds even when at full capacity, maximizing throughput in busy distribution centers.
- Electronic Power Steering (EPS): Unlike manual steering, our EPS system reduces steering effort by up to 90%. This allows for effortless maneuvering of the 2-ton machine in tight spaces, significantly reducing operator fatigue over an 8-hour shift and improving overall warehouse safety.
- Smart Speed-Limit Protection: To prevent accidents, the intelligent controller automatically monitors the fork height. Once the forks exceed a specific height, the drive speed is automatically restricted. This feature prevents high-speed turns while loads are elevated, protecting your inventory and staff.

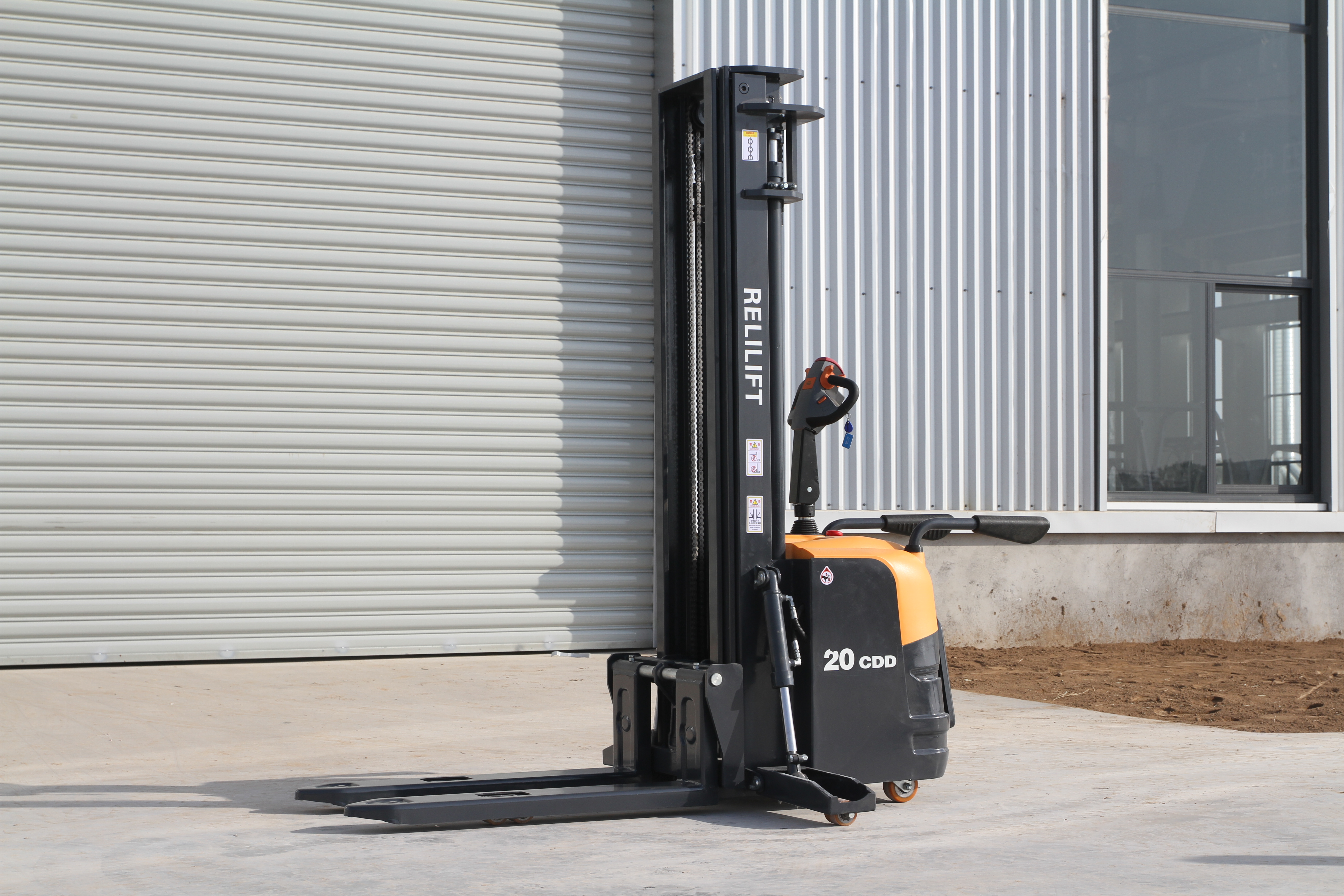

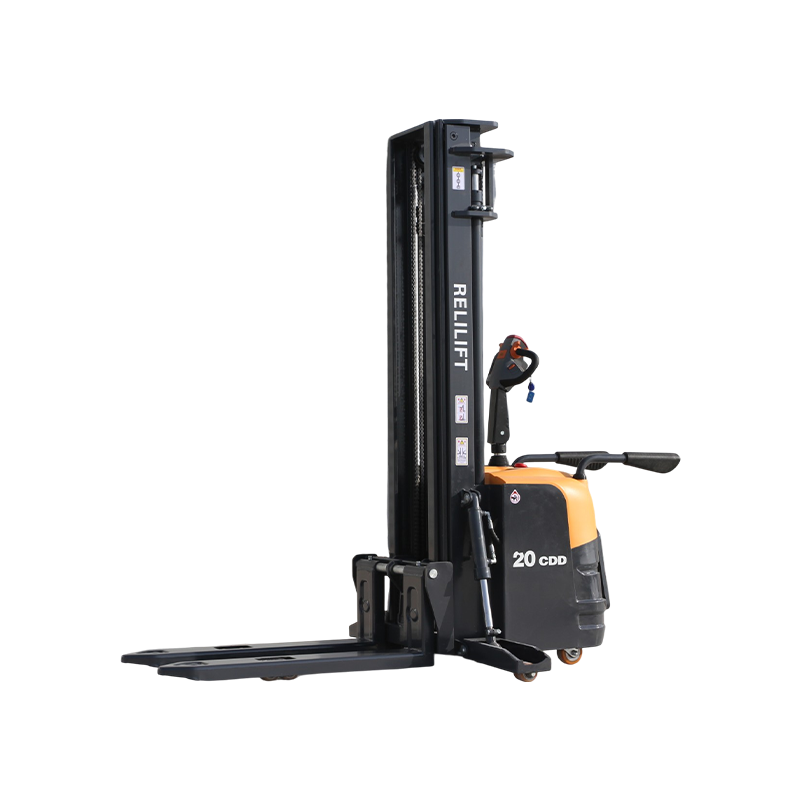

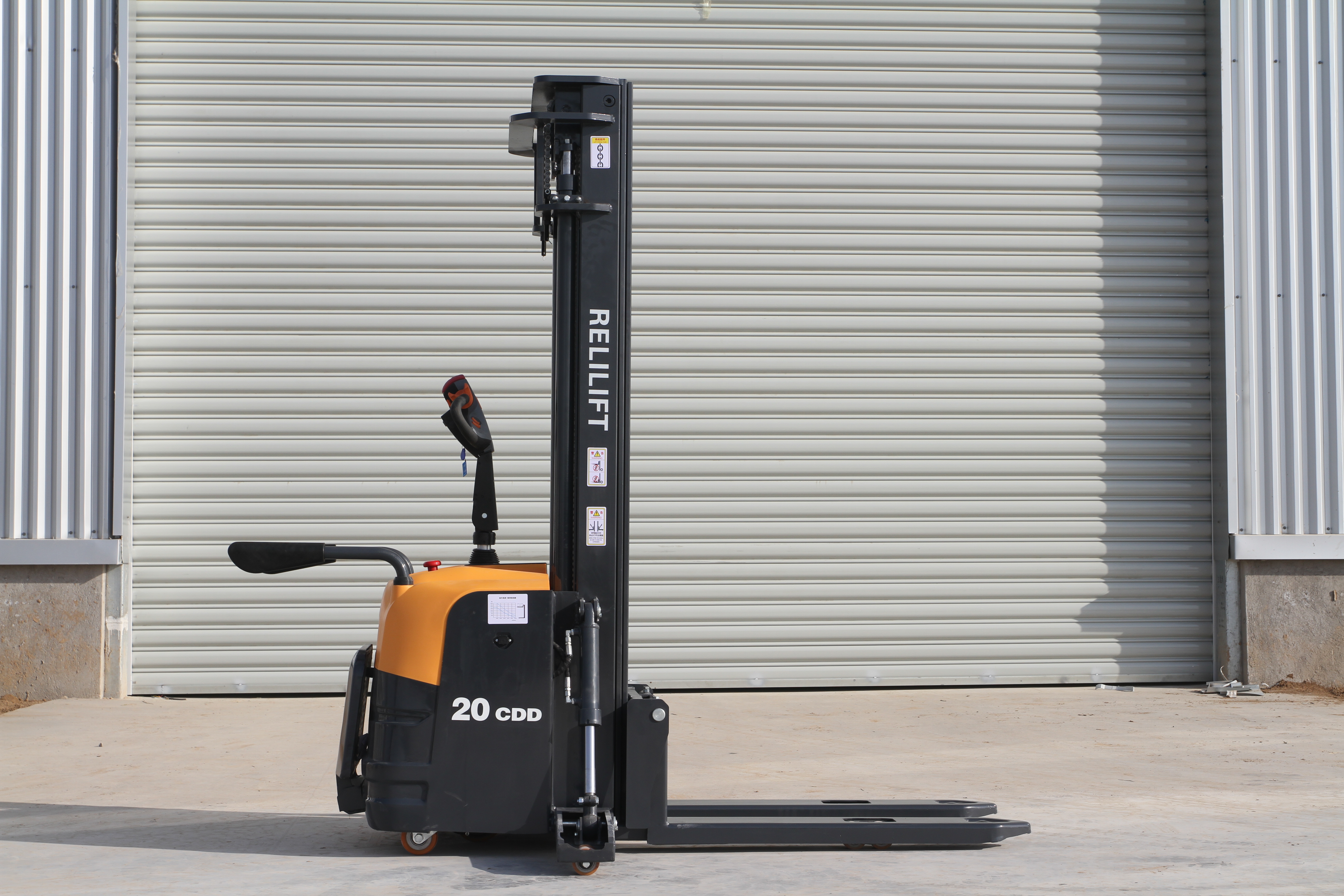

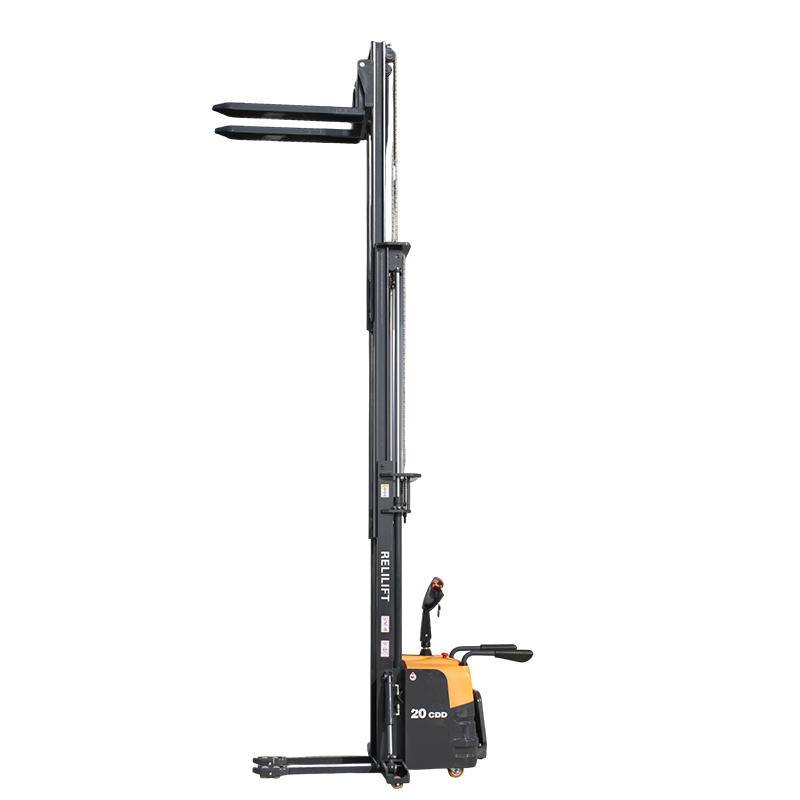

Product Images:
Application Scenarios:
- High-Rack Logistics Centers: Efficiently managing inventory in 3 to 4-tier racking systems.
- Heavy Manufacturing: Transporting and stacking heavy raw materials and machinery parts (up to 2 tons).
- Cold Storage & Food Distribution: Precision stacking in high-density, temperature-controlled environments.
- Automotive Parts Warehousing: Safe handling of heavy engine blocks and palletized components at height.
- Wholesale Club Stores: Moving large-volume consumer goods from delivery docks to high-level display racks.
