1.5 Ton Full Electric Stacker with 2m Lifting Height (Red Series)
- 1.5t Rated Capacity: Robust handling for standard industrial pallets.
- 2.0m Lifting Reach: Perfect for double-stacking and truck loading.
- High-Visibility Red: Safety-first industrial coating for busy sites.
- Full Electric Power: Effortless driving and lifting for maximum productivity.
- Narrow Aisle Master: Ultra-tight turning radius for small warehouses.
- Safety Emergency Stop: Instant power-off button on the control handle.
- Maintenance-Free Battery: Reliable 24V system with zero daily upkeep.
- CE Certified Quality: Built to international safety and durability standards.
- Overview
- Specifications
- Features
- Gallery
- Application
- Recommended Products
- How long does the battery last? The integrated 48V/32Ah battery supports 4-6 hours of continuous operation, equivalent to a full day of typical warehouse tasks.
- Is it suitable for narrow aisles? Yes, the compact design allows for a turning radius of approximately 1450mm, making it ideal for aisles as narrow as 2.2 meters.
Overview of the Relilift 1.5t Red Series Electric Stacker The Relilift RL-1520 is a professional-grade material handling solution designed for efficiency and operator comfort. Featuring a distinctive high-visibility red chassis, this stacker is engineered to handle 1500kg (1.5 Ton) loads with ease. The 2000mm (2m) duplex mast is constructed from high-strength C-channel steel, providing a stable platform for lifting pallets to racking systems or loading delivery vehicles.
Why This 2m Model is a Warehouse Essential For many warehouses, a 2m lift height is the "sweet spot." It is high enough to stack pallets two levels high but keeps the overall mast height low enough to pass through standard doorways and operate inside containers. As a factory-direct manufacturer, Relilift ensures every unit undergoes a 48-hour stress test before shipping, guaranteeing that your "Red Series" stacker arrives ready for work.
FAQ
Specifications and Parameters:
 Max.load |
1.5 t |
 Fork Dimensions |
1130*180*60 mm |
 Size |
1950*820*2000mm |
 Lifting Height |
2000 mm |
 Turning Radius |
1400mm |
 Weight |
0.5 t |
 Color |
Yellow |
 Speed |
4 km/h |
 MOQ |
1 set |
 Gradeability |
15% |
 Tyres |
PU wheel |
 Range of application |
Indoor / Outdoor |
Product Features:
- Reinforced C-Channel Duplex Mast: The lifting frame is made of high-quality industrial steel that resists twisting and swaying. Even when fully loaded to 1.5 tons at the 2m peak, the mast remains rigid, ensuring safe and precise placement of fragile cargo.
- Intelligent Ergonomic Handle: Our "all-in-one" control handle puts the lift, lower, and drive controls at the operator's fingertips. It includes a safety "belly button" reverse switch that prevents the operator from being pinned between the stacker and a wall.
- Variable Speed Control (Turtle Mode): Equipped with an advanced controller that allows for stepless speed adjustment. The "Turtle Mode" button allows for ultra-slow, high-precision movement—essential when maneuvering in tight corners or handling expensive inventory.
- Quiet & Powerful Hydraulic Pump: The 2.2kW lifting motor is optimized for low-noise operation (under 70dB) and smooth vertical movement. This prevents sudden jerks that could dislodge loads and reduces operator fatigue during long shifts.
- Smart Battery Management System (BMS): The built-in LED display provides real-time updates on battery percentage and hours used. The system automatically cuts power when the battery is critically low to prevent deep discharge, significantly extending the battery's lifespan.

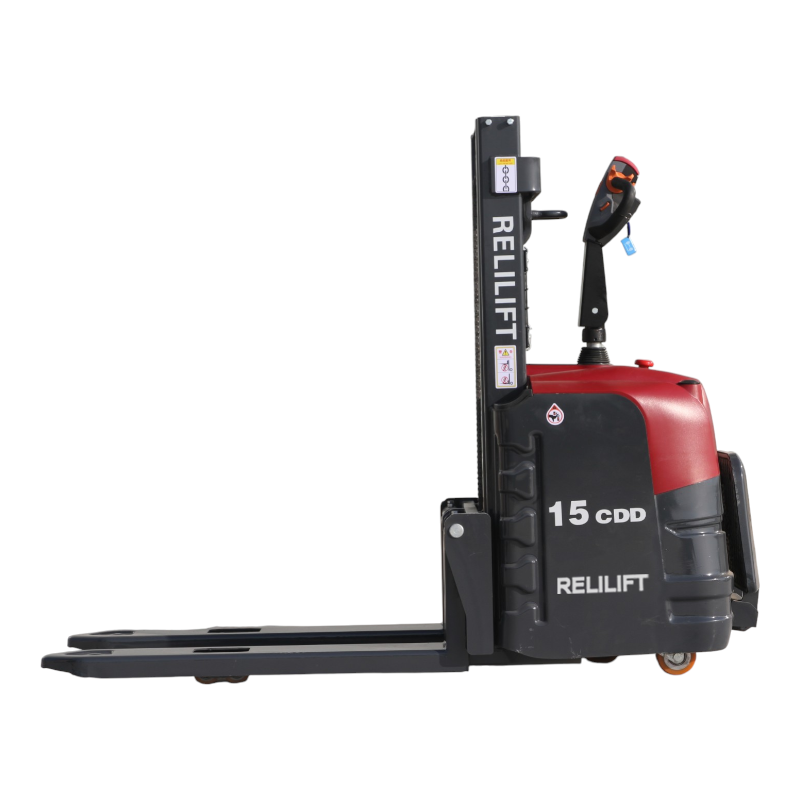

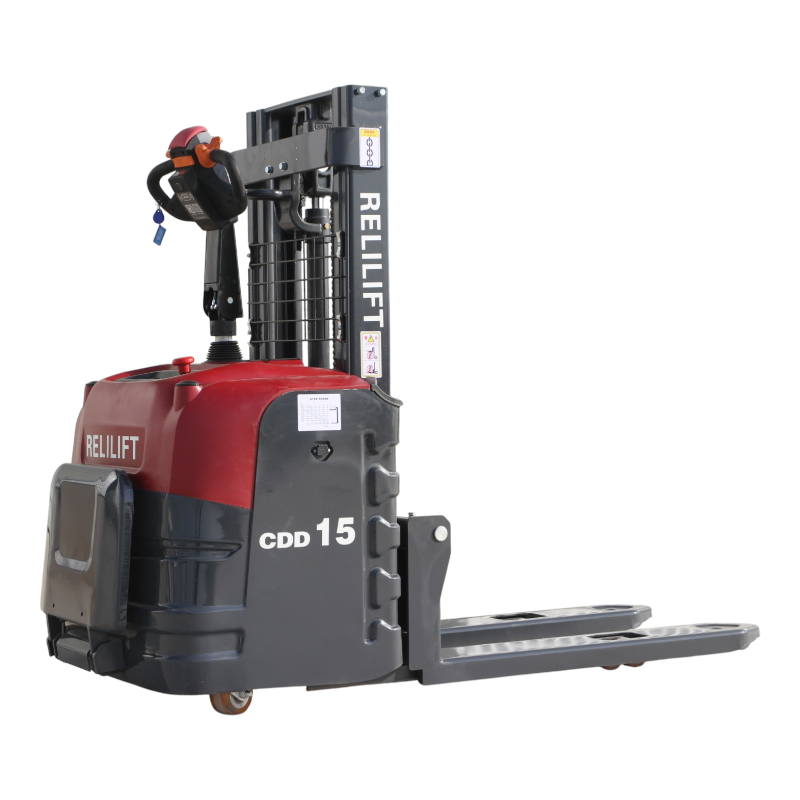

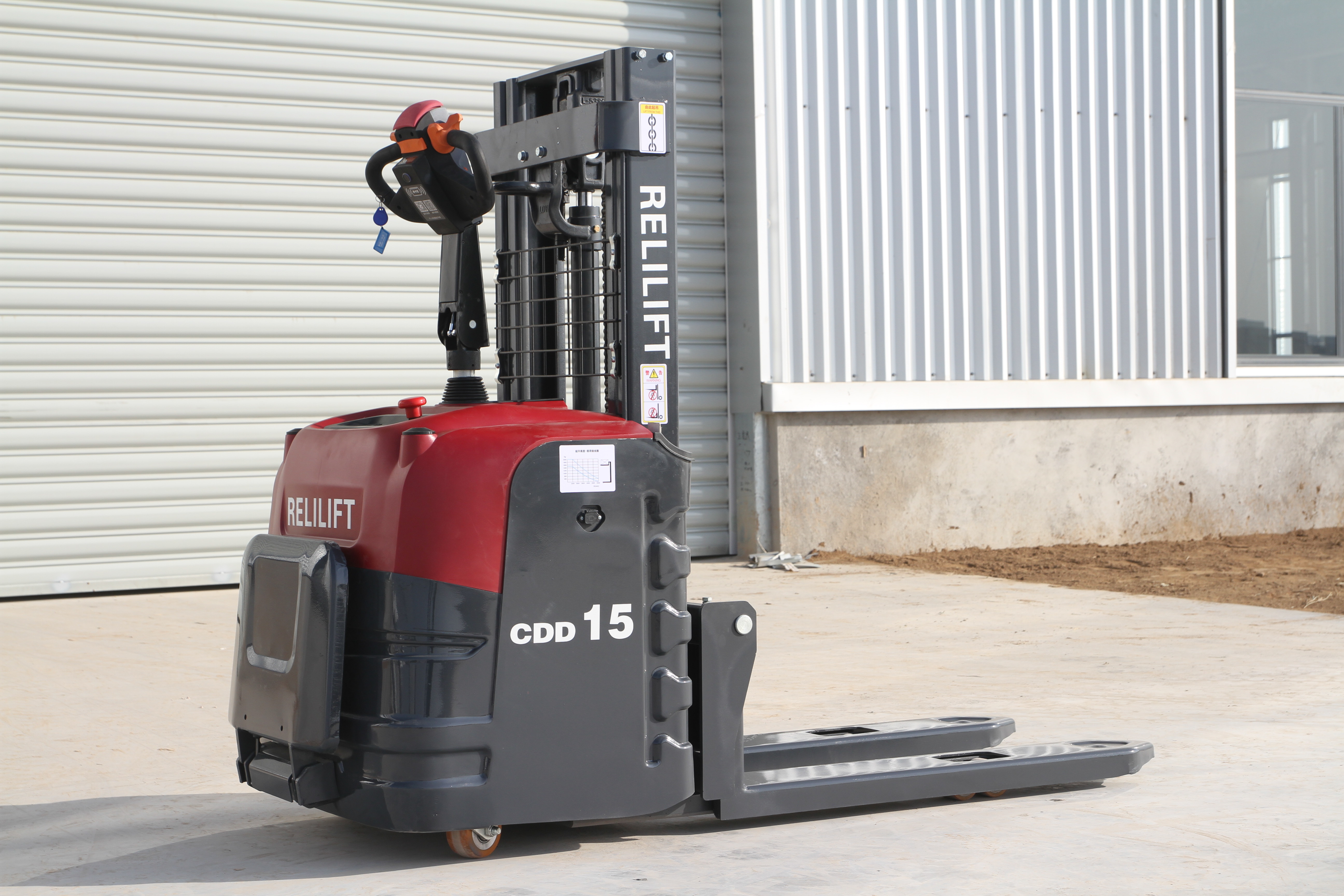

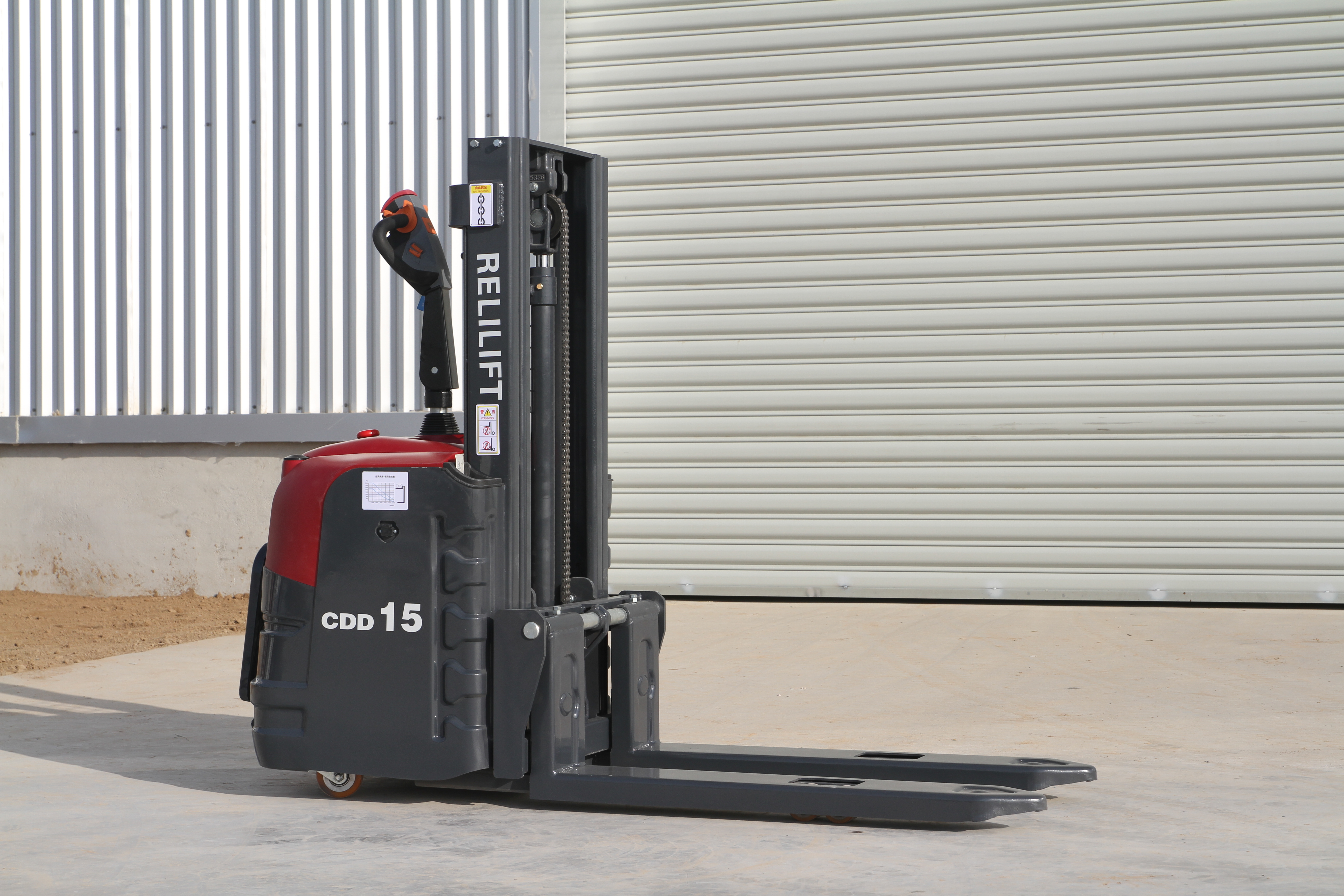

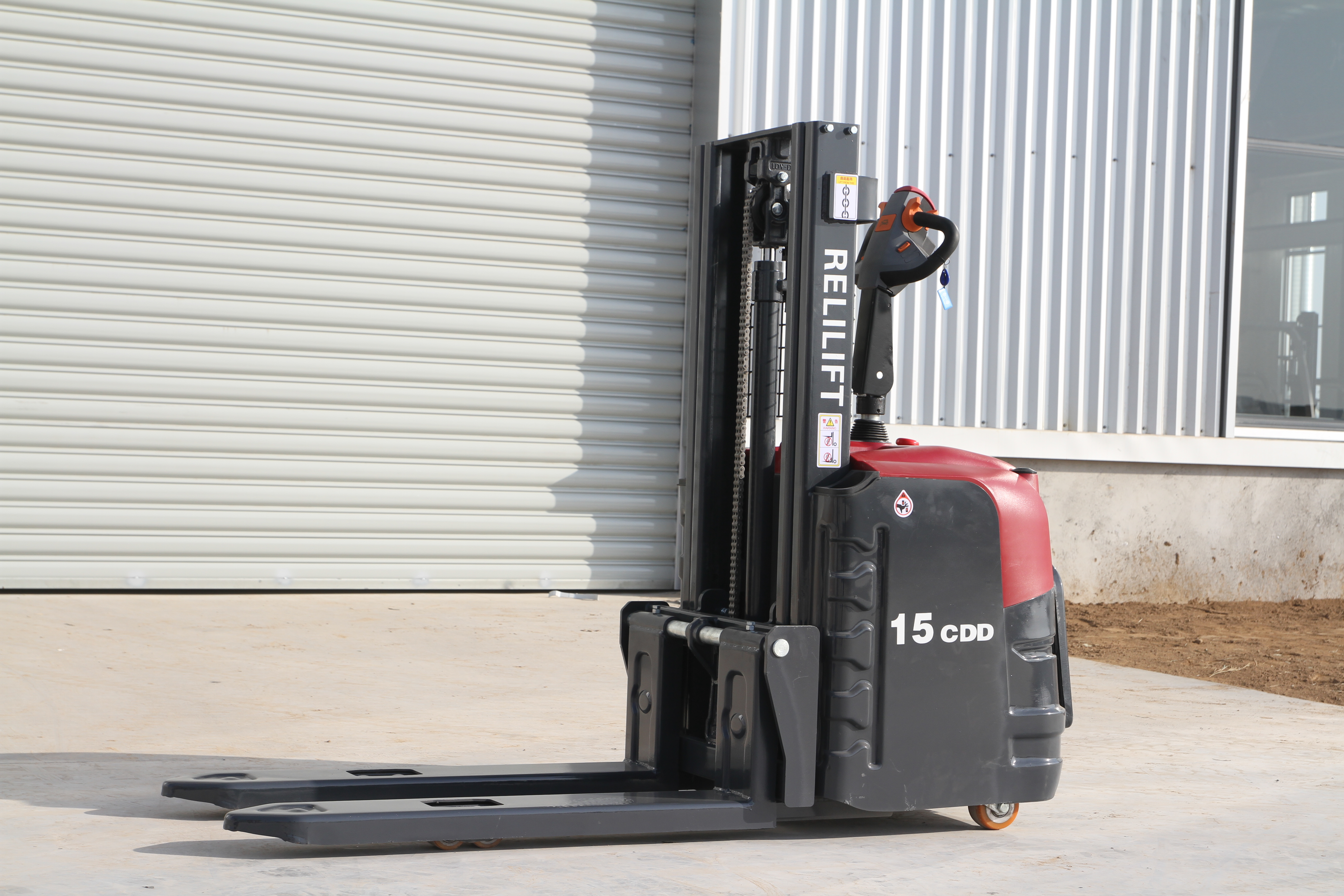

Product Images:
Application Scenarios:
- E-Commerce Fulfillment: Perfect for high-density shelving where quick picking and stacking are required.
- Manufacturing Workshops: Moving heavy raw materials from loading docks to production lines.
- Retail & Hardware Stores: Safely moving palletized goods from the backroom to the sales floor during business hours.
- Logistics & Distribution: Loading and unloading delivery vans and small trucks where a full-sized forklift is too bulky.
- Grocery & Beverage Warehousing: Handling food-grade pallets with precision in clean, indoor environments.
