1.5 Ton Full Electric Stacker - 2m Duplex Mast | Compact Logistics Series | Relilift RL-1520D
- 1500kg Payload Capacity: Built for heavy-duty daily pallet handling tasks.
- 2.0m Lifting Height: Perfect for double-stacking and loading delivery trucks.
- Stable Duplex Mast: Two-stage mast design provides superior rigidity and visibility.
- Low Overall Height: Easily passes through standard doorways and warehouse entrances.
- Full Electric Operation: Fully powered drive and lift to eliminate operator fatigue.
- Ultra-Compact Chassis: Small turning radius for exceptional maneuverability in tight spots.
- Emergency Safety Switch: Instantly cuts power for maximum operator protection.
- Maintenance-Free Battery: High-performance 24V system for reliable daily use.
- Overview
- Specifications
- Features
- Gallery
- Application
- Recommended Products
- Can it operate in narrow aisles? Yes, with a turning radius of just 1485mm, it can comfortably turn in aisles as narrow as 2.2 meters, significantly saving warehouse floor space.
- What is the charging requirement? It uses a standard industrial charger. A full charge (8-10 hours) provides enough energy for a typical 8-hour shift in most light-to-medium duty applications.
The Versatile Solution for Low-Clearance Warehousing The Relilift RL-1520D is a robust 1.5t electric stacker specifically designed for facilities that need a balance of lifting power and compact size. With its 2000mm (2m) lift height, this machine is the ideal choice for businesses operating in retail backrooms, small manufacturing plants, and logistics hubs with standard-sized doors.
Why Choose the Duplex Mast Configuration? The Duplex (Two-Stage) Mast on this 1.5t model offers a simpler, more rigid construction compared to triplex masts. It provides the operator with an excellent field of vision through the mast, ensuring safer placement of loads. The 2m reach is specifically optimized for "two-high" stacking on standard pallet racks, maximizing your vertical space without the need for large, expensive equipment.
Reliability Meets Efficiency
Specifications and Parameters:
 Max.load |
1.5 t |
 Fork Dimensions |
1130*180*60 mm |
 Size |
1950*820*2000mm |
 Lifting Height |
2000 mm |
 Turning Radius |
1400mm |
 Weight |
0.5 t |
 Color |
Yellow |
 Speed |
4 km/h |
 MOQ |
1 set |
 Gradeability |
15% |
 Tyres |
PU wheel |
 Range of application |
Indoor / Outdoor |
Product Features:
- High-Visibility Duplex Mast: Our duplex mast is constructed from reinforced C-channel steel profiles. The wide-view design ensures the operator has a clear line of sight to the forks and the load at all times, drastically reducing the risk of accidental damage to racking or inventory during high-reach maneuvers.
- Ergonomic Multi-Function Handle: The walkie-type control handle is designed for one-handed operation. It integrates the lift/lower buttons, drive speed controls, and a safety reverse "belly" switch. This ergonomic setup allows the operator to maintain focus on the load while maneuvering with precision.
- Powerful 2.2kW Hydraulic Pump: The heart of the lifting system is a high-output 2.2kW DC motor and hydraulic pump unit. It provides smooth, quiet, and consistent lifting speeds even at the maximum 1.5-ton capacity, ensuring that fragile cargo is handled with the utmost care.
- Smart Electromagnetic Braking: Safety is enhanced with an automatic electromagnetic braking system. The brake engages as soon as the handle is released or placed in a vertical/horizontal position, preventing the stacker from rolling on ramps or uneven warehouse floors.
- Robust Drive System & 0.75kW AC Motor: The maintenance-free AC drive motor offers strong torque and smooth acceleration. Unlike DC motors, AC technology eliminates carbon brushes, reducing long-term maintenance costs while providing more consistent power for uphill travel or heavy-load starts.

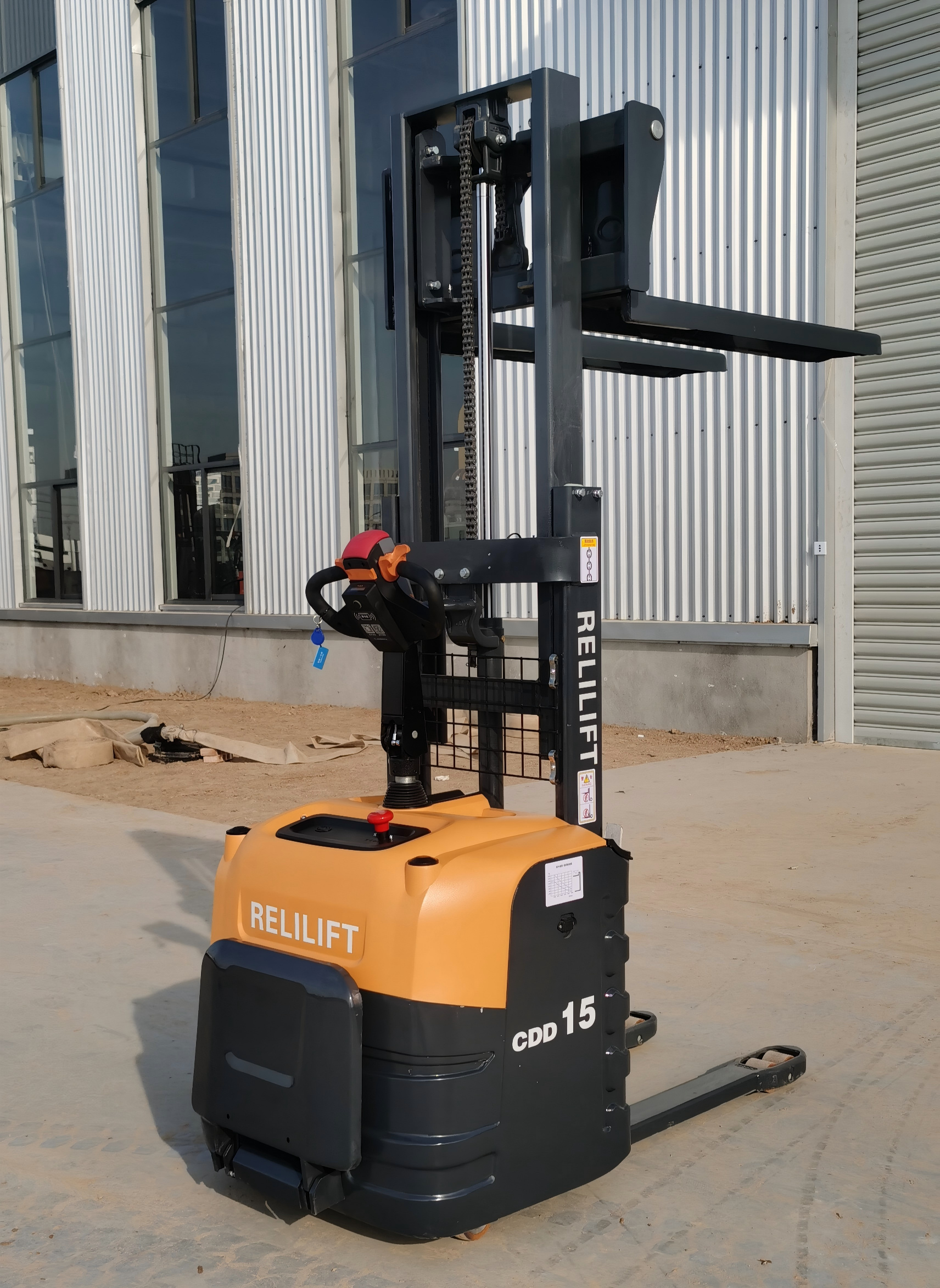

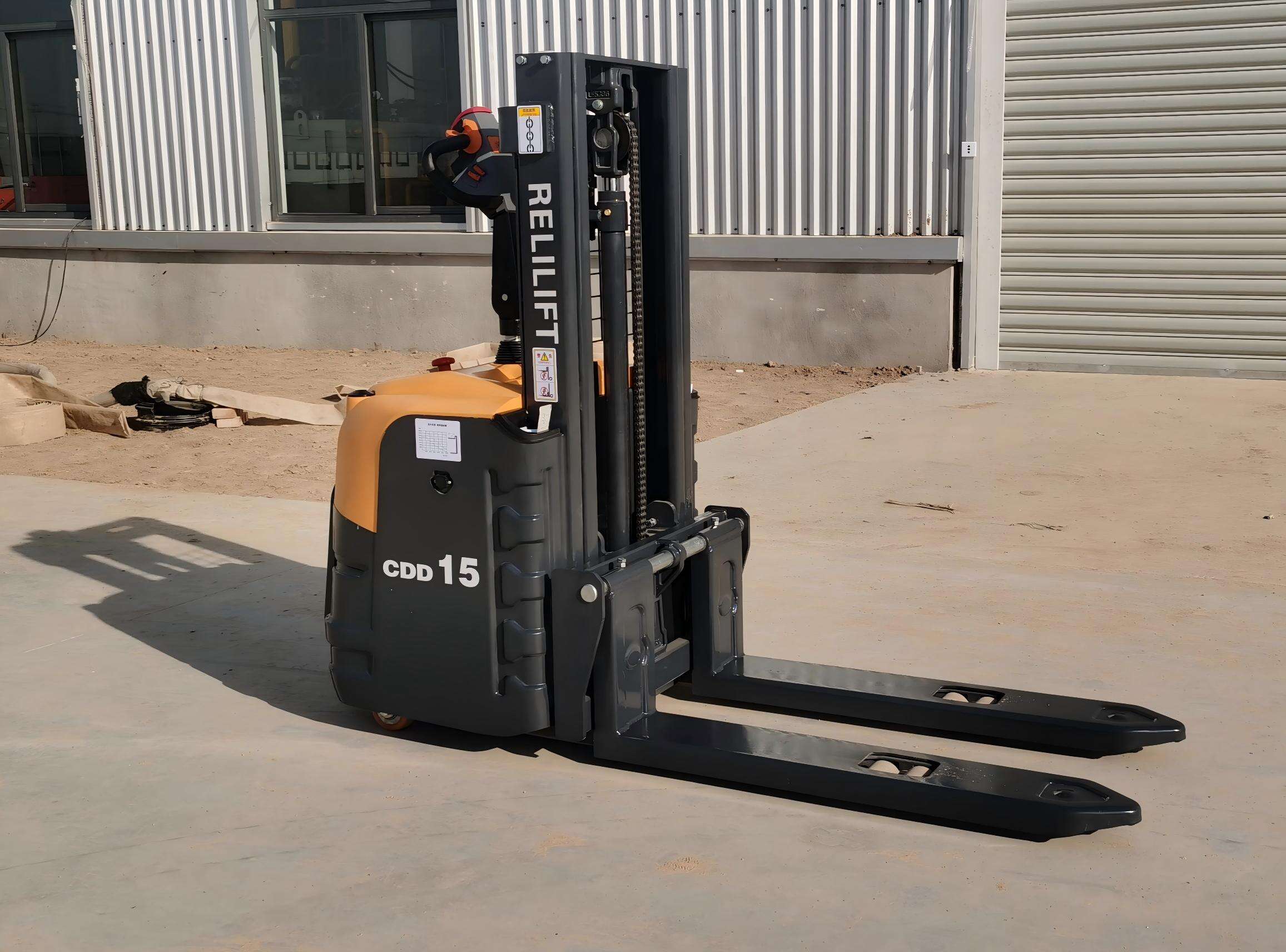

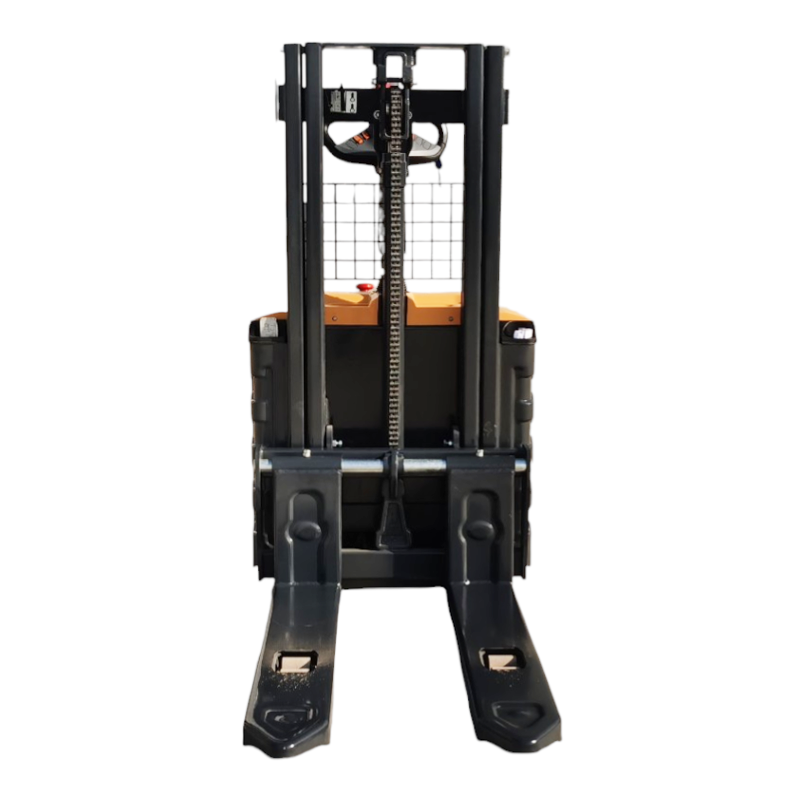

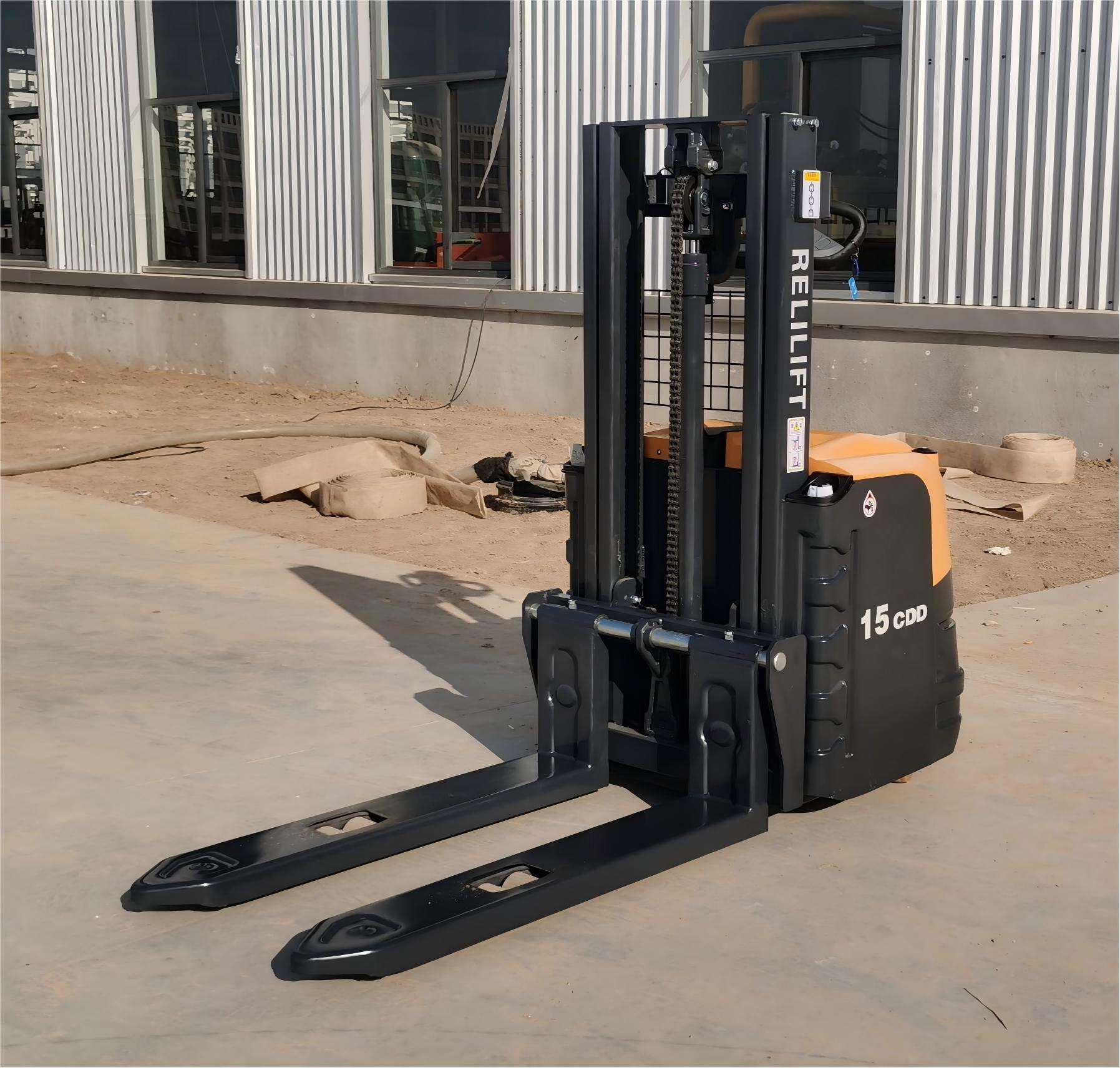

Product Images:
Application Scenarios:
- Retail Backrooms: Moving and stacking inventory from delivery trucks to storage racks in supermarkets or hardware stores.
- Small Factories: Transporting raw materials and finished goods between production lines and shipping docks.
- Print Shops & Packaging: Handling heavy paper rolls and palletized printed materials in confined spaces.
- Third-Party Logistics (3PL): Managing high-turnover small-to-medium pallet loads in urban fulfillment centers.
- Automotive Workshops: Stacking engines, tires, and palletized spare parts for efficient vertical storage.
